Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcbn/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcbn/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

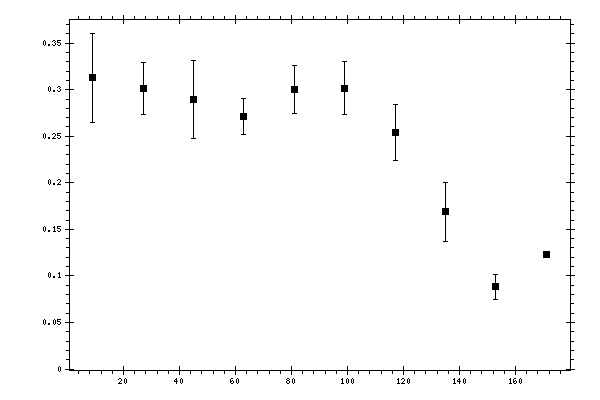

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.312763 | 0.0478545 | 0.02767175 |
| 27 | 0.301721 | 0.0278075 | 0.02439646 |
| 45 | 0.289446 | 0.0421092 | 0.0234244 |
| 63 | 0.271664 | 0.0194252 | 0.02300221 |
| 81 | 0.300163 | 0.0256695 | 0.02762427 |
| 99 | 0.301643 | 0.0286987 | 0.02903915 |
| 117 | 0.253771 | 0.0298547 | 0.0438821 |
| 135 | 0.169171 | 0.0316791 | 0.02267966 |
| 153 | 0.0882916 | 0.0131186 | 0.02997156 |
| 171 | 0.123277 | 0.00011985 | 0.06320147 |
