Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.9 — 1.95 GeV |
|

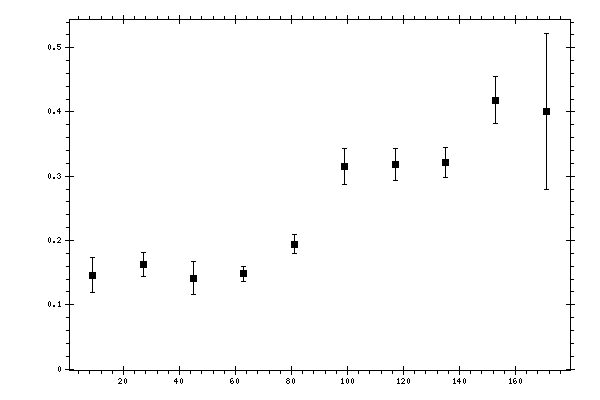

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.145753 | 0.0273486 | 0.03185331 |
| 27 | 0.163061 | 0.0184205 | 0.02618407 |
| 45 | 0.141224 | 0.0253099 | 0.02467343 |
| 63 | 0.147969 | 0.0121306 | 0.02218374 |
| 81 | 0.194468 | 0.0149886 | 0.01891484 |
| 99 | 0.315473 | 0.0276923 | 0.02743165 |
| 117 | 0.318424 | 0.0254794 | 0.02593765 |
| 135 | 0.321194 | 0.0235629 | 0.03975256 |
| 153 | 0.418659 | 0.0358084 | 0.0355458 |
| 171 | 0.401165 | 0.121658 | 0.04539833 |
