Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

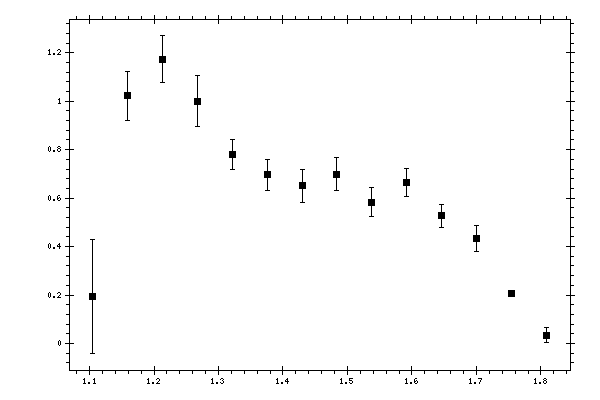

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.1049 | 0.194955 | 0.234914 | 0.05358277 |
| 1.15901 | 1.02167 | 0.102618 | 0.13883721 |
| 1.21313 | 1.17398 | 0.0958171 | 0.10117285 |
| 1.26724 | 1.00053 | 0.103791 | 0.08758078 |
| 1.32135 | 0.779365 | 0.0611106 | 0.07243709 |
| 1.37547 | 0.696096 | 0.0646625 | 0.06478329 |
| 1.42958 | 0.650053 | 0.0694147 | 0.06409847 |
| 1.48369 | 0.698752 | 0.0669521 | 0.06888821 |
| 1.53781 | 0.58265 | 0.0603775 | 0.06526621 |
| 1.59192 | 0.664144 | 0.056552 | 0.0743898 |
| 1.64603 | 0.527433 | 0.0474666 | 0.04867299 |
| 1.70015 | 0.433881 | 0.0523343 | 0.04005026 |
| 1.75426 | 0.206665 | 0.0130919 | 0.02515024 |
| 1.80837 | 0.03468 | 0.0319593 | 0.00439221 |
