Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

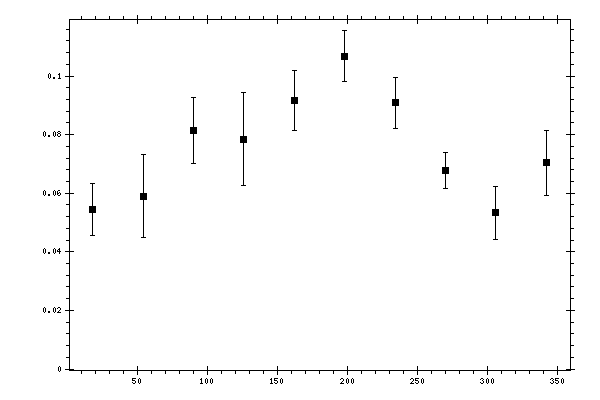

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0545857 | 0.00891259 | 0.0086816 |
| 54 | 0.0590209 | 0.0142348 | 0.01128787 |
| 90 | 0.0814007 | 0.0111879 | 0.00830513 |
| 126 | 0.0784035 | 0.0158643 | 0.01008194 |
| 162 | 0.0916557 | 0.010302 | 0.00936056 |
| 198 | 0.106838 | 0.00874382 | 0.00942571 |
| 234 | 0.090876 | 0.00869628 | 0.00756167 |
| 270 | 0.0677914 | 0.00605559 | 0.00577083 |
| 306 | 0.0532627 | 0.00916305 | 0.00654703 |
| 342 | 0.0704526 | 0.0111234 | 0.00839582 |
