Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

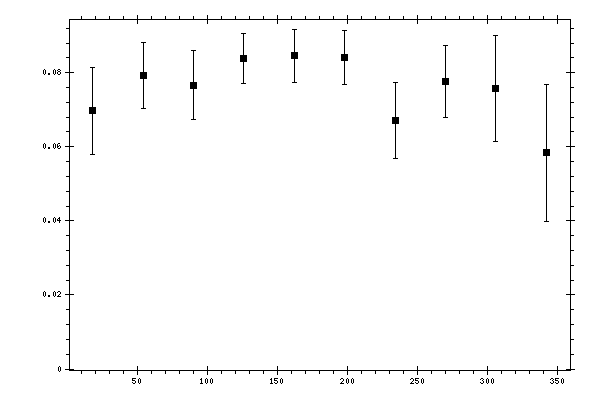

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0696858 | 0.011835 | 0.00780961 |
| 54 | 0.0792675 | 0.00890713 | 0.00782708 |
| 90 | 0.0766691 | 0.00920574 | 0.00677108 |
| 126 | 0.0838605 | 0.0067075 | 0.00766166 |
| 162 | 0.0845335 | 0.0071263 | 0.00840313 |
| 198 | 0.0841189 | 0.00727715 | 0.00806967 |
| 234 | 0.0672111 | 0.0102366 | 0.00622971 |
| 270 | 0.0777383 | 0.0097101 | 0.00864796 |
| 306 | 0.0757082 | 0.0143413 | 0.00844475 |
| 342 | 0.0583826 | 0.0184166 | 0.00741148 |
