Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 1.95 — 2 GeV |
|

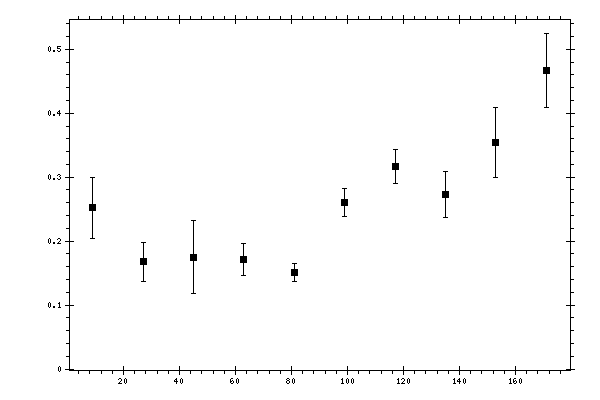

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.25181 | 0.0478137 | 0.04006861 |
| 27 | 0.167749 | 0.0303761 | 0.02288984 |
| 45 | 0.174787 | 0.0569609 | 0.02439237 |
| 63 | 0.171394 | 0.024412 | 0.01999078 |
| 81 | 0.151204 | 0.0139498 | 0.01568493 |
| 99 | 0.25998 | 0.021665 | 0.02369019 |
| 117 | 0.316592 | 0.0263805 | 0.02743532 |
| 135 | 0.273522 | 0.0360035 | 0.02749176 |
| 153 | 0.354172 | 0.0545908 | 0.03353363 |
| 171 | 0.467134 | 0.0582527 | 0.04289029 |
