Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcbn/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

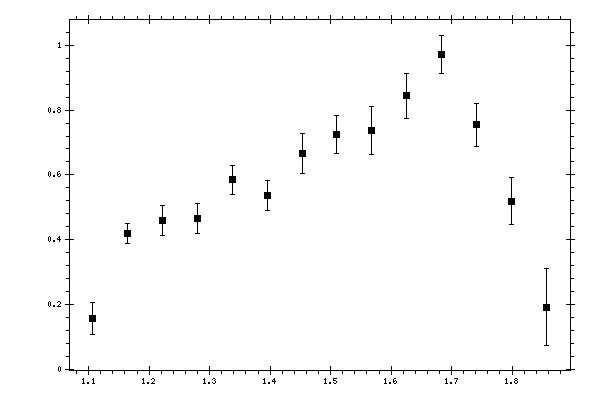

Observable quantity measured (Y axis): dσ/dM(π−,p), mcbn/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10668 | 0.156431 | 0.0505745 | 0.01435919 |
| 1.16437 | 0.420261 | 0.0308555 | 0.03684219 |
| 1.22205 | 0.458054 | 0.0465503 | 0.04370495 |
| 1.27974 | 0.465696 | 0.0461668 | 0.04442368 |
| 1.33742 | 0.584211 | 0.0436399 | 0.06358924 |
| 1.39511 | 0.536605 | 0.0455346 | 0.05845163 |
| 1.45279 | 0.665831 | 0.0611502 | 0.06204477 |
| 1.51048 | 0.725031 | 0.0586005 | 0.06743817 |
| 1.56816 | 0.736773 | 0.0738317 | 0.06756084 |
| 1.62585 | 0.844577 | 0.0689588 | 0.07709404 |
| 1.68353 | 0.972003 | 0.0586717 | 0.08486771 |
| 1.74122 | 0.754918 | 0.0665751 | 0.06898946 |
| 1.7989 | 0.519019 | 0.0726339 | 0.06187422 |
| 1.85659 | 0.191247 | 0.119656 | 0.03187307 |
