Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|

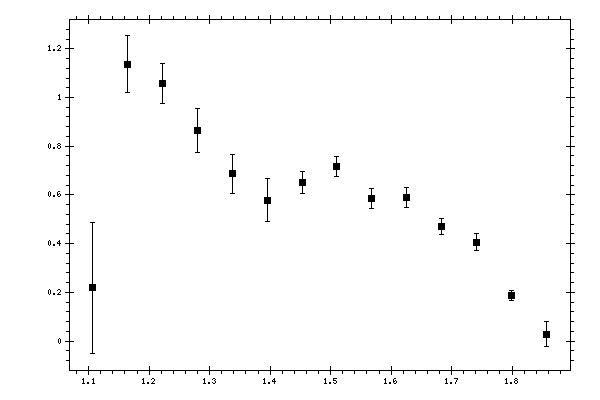

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Stat. error,
mcbn/GeV |
Syst. error,
mcbn/GeV |
|---|---|---|---|
| 1.10668 | 0.217881 | 0.267452 | 0.05654152 |
| 1.16437 | 1.13587 | 0.117136 | 0.13359222 |
| 1.22205 | 1.05879 | 0.0819424 | 0.10356121 |
| 1.27974 | 0.865078 | 0.0906536 | 0.08573573 |
| 1.33742 | 0.686886 | 0.0797127 | 0.07582015 |
| 1.39511 | 0.579066 | 0.0868173 | 0.06399964 |
| 1.45279 | 0.651404 | 0.0448171 | 0.05693633 |
| 1.51048 | 0.716352 | 0.0427372 | 0.06259171 |
| 1.56816 | 0.585161 | 0.0408284 | 0.05765645 |
| 1.62585 | 0.589909 | 0.0406637 | 0.05812399 |
| 1.68353 | 0.471478 | 0.0332036 | 0.04401421 |
| 1.74122 | 0.406349 | 0.0357657 | 0.03793806 |
| 1.7989 | 0.186137 | 0.0202046 | 0.02011675 |
| 1.85659 | 0.0283776 | 0.0517462 | 0.00324271 |
