Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcbn/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcbn/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

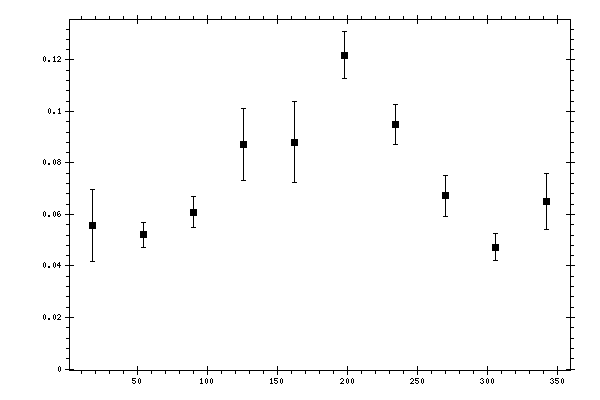

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0557563 | 0.0140974 | 0.00872142 |
| 54 | 0.0520658 | 0.00500424 | 0.00578476 |
| 90 | 0.0609529 | 0.00596665 | 0.01041672 |
| 126 | 0.0872513 | 0.0140586 | 0.00923414 |
| 162 | 0.0881189 | 0.0156461 | 0.00914879 |
| 198 | 0.121912 | 0.00912334 | 0.0117328 |
| 234 | 0.094948 | 0.00773046 | 0.00809507 |
| 270 | 0.0672149 | 0.00805841 | 0.00598517 |
| 306 | 0.0473113 | 0.00514318 | 0.00553019 |
| 342 | 0.0651524 | 0.0109045 | 0.01075621 |
