Parameter (X axis): ψ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π+ and π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad
Parameter (X axis): ψ(p), deg |
Click here to get data in text file, delimited with tabs.

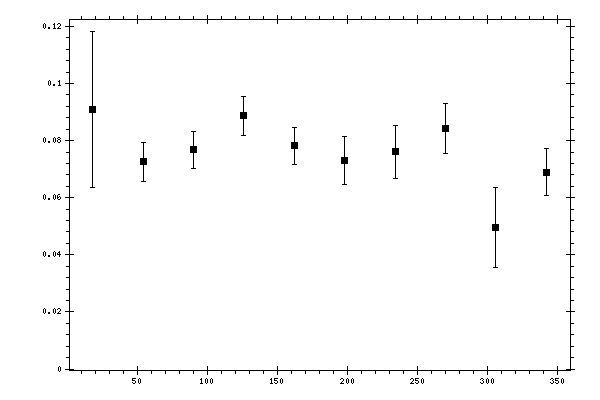

Measured data:
|
ψ(p),
deg |
dσ/dψ(p),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 18 | 0.0908813 | 0.0272425 | 0.01450341 |
| 54 | 0.072565 | 0.0068914 | 0.00721622 |
| 90 | 0.0767143 | 0.00654174 | 0.00812174 |
| 126 | 0.0886233 | 0.00681055 | 0.00740007 |
| 162 | 0.0782091 | 0.00650499 | 0.00699676 |
| 198 | 0.0730864 | 0.00843532 | 0.00817117 |
| 234 | 0.0760167 | 0.00930169 | 0.00732807 |
| 270 | 0.084254 | 0.00868117 | 0.00816334 |
| 306 | 0.0495122 | 0.0139245 | 0.00676338 |
| 342 | 0.0689728 | 0.00818361 | 0.00806253 |
