Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: CLAS12 Run Group A, 2018
Spokespersons: Krishna Chandra
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 7 — 8 GeV2 |
|---|---|
| W : | 2 — 2.05 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

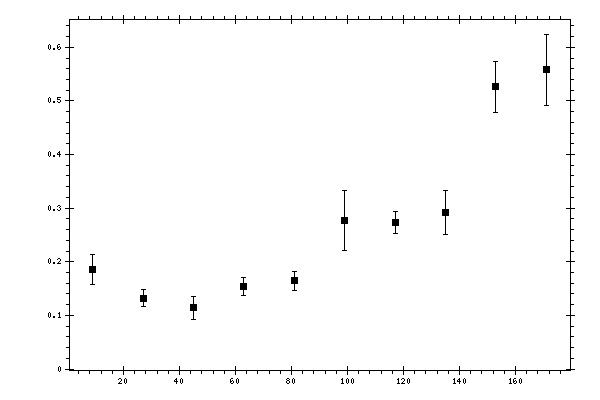

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcbn/rad |
Stat. error,
mcbn/rad |
Syst. error,
mcbn/rad |
|---|---|---|---|
| 9 | 0.185278 | 0.0281595 | 0.02729394 |
| 27 | 0.132396 | 0.0163973 | 0.02453097 |
| 45 | 0.114076 | 0.021366 | 0.02459965 |
| 63 | 0.153139 | 0.0169745 | 0.02081008 |
| 81 | 0.164151 | 0.0169958 | 0.01848529 |
| 99 | 0.27732 | 0.0556246 | 0.0418655 |
| 117 | 0.273186 | 0.0210867 | 0.02200573 |
| 135 | 0.292507 | 0.0412258 | 0.03140224 |
| 153 | 0.526131 | 0.0469479 | 0.04685798 |
| 171 | 0.557781 | 0.0665528 | 0.07937165 |
