Parameter (X axis): Eγ, GeV
You are not logged in.
Experiment: E04-021 CLAS experiment, 2004
Spokespersons: M. Battaglieri, R. De Vita, V. Kubarovsky
No publications available for this experiment
Quantity measured: σ, nb
Cross section.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ K+ Ξ(1320)−, polarization: none
| Eγ : | 2.74 — 4.74 GeV |
|---|
|
Observable quantity measured (Y axis): σ, nb
Parameter (X axis): Eγ, GeV |
Click here to get data in text file, delimited with tabs.

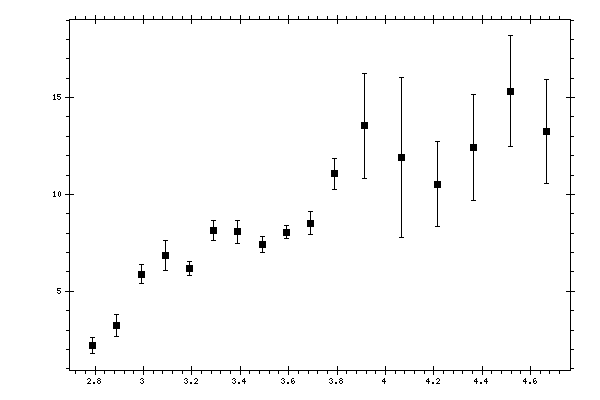

Measured data:
|
Eγ,
GeV |
σ,
nb |
Data errors,
nb |
Systematic errors,
nb |
Full errors,
nb |
|---|---|---|---|---|
| 2.79 | 2.20094 | 0.39415 | 0.16576 | 0.42759 |
| 2.89 | 3.22602 | 0.5692 | 0.43576 | 0.71685 |
| 2.99 | 5.88458 | 0.4759 | 0.36889 | 0.60213 |
| 3.09 | 6.86954 | 0.77154 | 0.36534 | 0.85367 |
| 3.19 | 6.17228 | 0.34941 | 0.49188 | 0.60335 |
| 3.29 | 8.11387 | 0.51693 | 0.47309 | 0.70073 |
| 3.39 | 8.06692 | 0.58515 | 1.08944 | 1.23664 |
| 3.49 | 7.41348 | 0.42397 | 1.0232 | 1.10756 |
| 3.59 | 8.03709 | 0.33298 | 1.12548 | 1.1737 |
| 3.69 | 8.5158 | 0.59118 | 1.1211 | 1.26742 |
| 3.79 | 11.0568 | 0.78586 | 1.31868 | 1.53509 |
| 3.915 | 13.5419 | 2.70838 | 2.70838 | 3.83023 |
| 4.065 | 11.9041 | 4.10975 | 2.38082 | 4.74956 |
| 4.215 | 10.5268 | 2.19962 | 2.10535 | 3.04481 |
| 4.365 | 12.432 | 2.74473 | 2.4864 | 3.70347 |
| 4.515 | 15.3326 | 2.85257 | 3.06651 | 4.18816 |
| 4.665 | 13.2557 | 2.68957 | 2.65114 | 3.77655 |
