Measurement E34M17

You are not logged in.

Experiment: E2A run CLAS data, 2010

Spokespersons: M. Osipenko

Publication:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.975 GeV2
W : 0.5052245 — 1.768754 GeV
xb : 0.3025 — 2.7865

Observable quantity measured (Y axis): F2, dimensionless

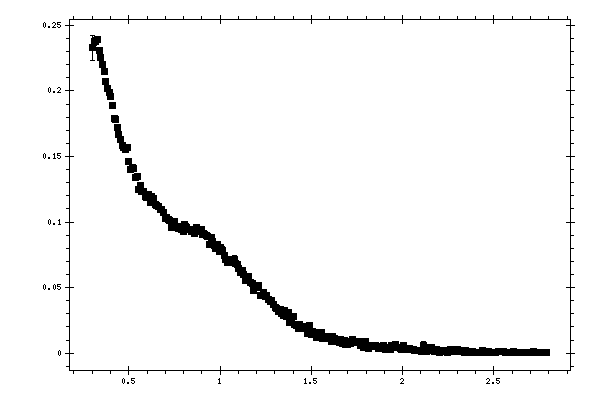

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.3025 0.23276 0.0092327 0.023578
0.3115 0.23774 0.003253 0.023296
0.3205 0.23783 0.0023668 0.023482
0.3295 0.23895 0.002169 0.023326
0.3385 0.23084 0.0021304 0.022627
0.3475 0.22513 0.0021311 0.021964
0.3565 0.21993 0.0021502 0.021451
0.3655 0.21454 0.0021703 0.020486
0.3745 0.2072 0.002176 0.019876
0.3835 0.20201 0.0021556 0.01988
0.3925 0.19851 0.002176 0.019803
0.4015 0.19567 0.0022096 0.019082
0.4105 0.18854 0.0021639 0.017489
0.4195 0.17879 0.002097 0.017498
0.4285 0.17834 0.0021614 0.017395
0.4375 0.17219 0.0021517 0.017321
0.4465 0.16657 0.0021442 0.016305
0.4555 0.1626 0.0021379 0.015111
0.4645 0.15817 0.0021451 0.0146
0.4735 0.15665 0.0021853 0.014895
0.4825 0.1555 0.0022544 0.013628
0.4915 0.15664 0.0023555 0.014671
0.5005 0.146 0.0022404 0.013533
0.5095 0.13975 0.002181 0.012419
0.5185 0.14175 0.002262 0.012467
0.5275 0.14048 0.0022803 0.012561
0.5365 0.13422 0.0022237 0.011761
0.5455 0.13504 0.0022835 0.012029
0.5545 0.12476 0.0021442 0.01199
0.5635 0.1282 0.0022057 0.01098
0.5725 0.12306 0.0021412 0.01094
0.5815 0.12364 0.0021984 0.0098376
0.5905 0.1194 0.0021714 0.0093461
0.5995 0.11894 0.0022078 0.010606
0.6085 0.12074 0.002316 0.0092035
0.6175 0.11467 0.0021989 0.0080139
0.6265 0.11962 0.0023894 0.009056
0.6355 0.11793 0.002368 0.0081159
0.6445 0.11368 0.0023053 0.0069855
0.6535 0.1129 0.0023309 0.0068063
0.6625 0.11193 0.0023364 0.0068139
0.6715 0.10932 0.0022952 0.0063095
0.6805 0.10965 0.0023224 0.0054666
0.6895 0.10748 0.0022993 0.0052692
0.6985 0.10279 0.0021605 0.0058727
0.7075 0.10347 0.0022116 0.0052685
0.7165 0.10213 0.0022212 0.0044928
0.7255 0.10139 0.0022262 0.00457
0.7345 0.095557 0.0021017 0.0045025
0.7435 0.098397 0.0022016 0.0056895
0.7525 0.10064 0.0023106 0.0031581
0.7615 0.096068 0.0022178 0.0036246
0.7705 0.095327 0.0022493 0.0037319
0.7795 0.096739 0.0022961 0.0031166
0.7885 0.09429 0.0022362 0.002981
0.7975 0.092748 0.0021834 0.0048977
0.8065 0.097784 0.0023857 0.0036131
0.8155 0.096207 0.002356 0.0019909
0.8245 0.093987 0.0023201 0.0042004
0.8335 0.094432 0.0023558 0.0025766
0.8425 0.09291 0.0023228 0.0041013
0.8515 0.094351 0.0023876 0.0024578
0.8605 0.091008 0.0023262 0.0043772
0.8695 0.095706 0.0025008 0.0025669
0.8785 0.09395 0.0024437 0.0037201
0.8875 0.093209 0.0024743 0.001993
0.8965 0.094294 0.0025319 0.0063182
0.9055 0.090617 0.0024691 0.0040014
0.9145 0.090741 0.0024835 0.0044372
0.9235 0.089437 0.0024741 0.0023817
0.9325 0.089031 0.0025066 0.0020043
0.9415 0.083077 0.0023255 0.0037843
0.9505 0.088284 0.002557 0.0028287
0.9595 0.084848 0.0025066 0.0046876
0.9685 0.081867 0.0024498 0.0028339
0.9775 0.080156 0.0024581 0.0021066
0.9865 0.082876 0.0026172 0.0033943
0.9955 0.077603 0.0024533 0.0028506
1.0045 0.080246 0.0025823 0.0021692
1.0135 0.078507 0.0025421 0.0031052
1.0225 0.074641 0.0024049 0.0015118
1.0315 0.071368 0.0023451 0.0012262
1.0405 0.069177 0.0022701 0.0023843
1.0495 0.069763 0.0023544 0.003687
1.0585 0.069328 0.0023917 0.0022568
1.0675 0.071152 0.0025216 0.0016409
1.0765 0.071666 0.0025958 0.0046636
1.0855 0.068379 0.0024839 0.0025943
1.0945 0.067501 0.0025269 0.002334
1.1035 0.064839 0.0024375 0.0021798
1.1125 0.061454 0.0023243 0.0023688
1.1215 0.063166 0.0024618 0.0019564
1.1305 0.06017 0.0023942 0.0022273
1.1395 0.055574 0.0022018 0.0024913
1.1485 0.056906 0.002299 0.0025825
1.1575 0.05847 0.002431 0.0019534
1.1665 0.053919 0.0022519 0.0022974
1.1755 0.052844 0.0021988 0.0020118
1.1845 0.047587 0.002066 0.0022477
1.1935 0.05081 0.0022653 0.001402
1.2025 0.050238 0.0022469 0.0037938
1.2115 0.051526 0.0024472 0.0015807
1.2205 0.044276 0.0020711 0.00074862
1.2295 0.044295 0.0021393 0.0010908
1.2385 0.046254 0.0022946 0.0022668
1.2475 0.043547 0.0021469 0.0023894
1.2565 0.043958 0.0022801 0.0032595
1.2655 0.040613 0.002171 0.0045118
1.2745 0.039544 0.0022395 0.0027018
1.2835 0.040338 0.0024837 0.001258
1.2925 0.036794 0.0022766 0.0013807
1.3015 0.034601 0.0022074 0.0011171
1.3105 0.03369 0.0022087 0.0016766
1.3195 0.031954 0.0020672 0.0010676
1.3285 0.033263 0.0021156 0.0028503
1.3375 0.030398 0.0019727 0.0020978
1.3465 0.028438 0.0018207 0.0014879
1.3555 0.032476 0.0021965 0.00055018
1.3645 0.028301 0.001832 0.0035503
1.3735 0.031174 0.0021378 0.0025371
1.3825 0.023498 0.0015466 0.0011478
1.3915 0.025115 0.001785 0.00098372
1.4005 0.028149 0.0020203 0.0030607
1.4095 0.022104 0.0016033 0.00065015
1.4185 0.020935 0.0015659 0.0022661
1.4275 0.01919 0.0014296 0.0022289
1.4365 0.021987 0.0017283 0.00078514
1.4455 0.020342 0.0016579 0.00074272
1.4545 0.018524 0.0015266 0.001828
1.4635 0.020695 0.0017017 0.001794
1.4725 0.019752 0.0017245 0.00033629
1.4815 0.01504 0.0011982 0.0013068
1.4905 0.020772 0.0019731 0.00059489
1.4995 0.013916 0.0013033 0.0002377
1.5085 0.016143 0.0015382 0.0027163
1.5175 0.015292 0.0014209 0.0014505
1.5265 0.012097 0.0011198 0.0015142
1.5355 0.013852 0.0013725 0.00094546
1.5445 0.015734 0.0016181 0.0013024
1.5535 0.015451 0.0017027 0.00094467
1.5625 0.011312 0.0011781 0.00049531
1.5715 0.01205 0.0012796 0.00061372
1.5805 0.011568 0.0012887 0.00072941
1.5895 0.012633 0.0014035 0.0015801
1.5985 0.011193 0.0013045 0.00174
1.6075 0.008928 0.0010335 0.00045723
1.6165 0.012493 0.0015625 0.0010659
1.6255 0.011436 0.0013627 0.00060753
1.6345 0.01001 0.0013471 0.00062551
1.6435 0.0088381 0.0011533 0.0010336
1.6525 0.0079848 0.0010162 0.00066167
1.6615 0.01008 0.0014148 0.0013346
1.6705 0.0074308 0.0010256 0.00086617
1.6795 0.0096284 0.0014415 0.0021382
1.6885 0.0066338 0.00089649 0.00022272
1.6975 0.0068846 0.00099537 0.00086243
1.7065 0.0089936 0.0014939 0.0011311
1.7155 0.0073968 0.0012158 0.001471
1.7245 0.01004 0.0017036 0.0015798
1.7335 0.0084228 0.0014185 0.00081695
1.7425 0.0089155 0.0015923 0.0015569
1.7515 0.0085629 0.0015687 0.0010235
1.7605 0.0091087 0.0017202 0.0011068
1.7695 0.0061812 0.0011359 0.00083992
1.7785 0.005946 0.001066 0.00010074
1.7875 0.0046189 0.00079791 0.00033717
1.7965 0.0092187 0.0019871 0.00034732
1.8055 0.0052083 0.0010242 0.0011514
1.8145 0.0036734 0.00071596 0.00037885
1.8235 0.0052044 0.0010596 0.00044137
1.8325 0.0056581 0.0012138 0.00056943
1.8415 0.004991 0.0010815 0.00075592
1.8505 0.006184 0.0015052 0.00076238
1.8595 0.0053103 0.0011128 0.00037181
1.8685 0.003517 0.00072378 0.00088829
1.8775 0.0041318 0.00088346 0.00061302
1.8865 0.0035539 0.00079903 0.0015634
1.8955 0.0055595 0.0013757 0.00058254
1.9045 0.0030504 0.00065772 0.00034798
1.9135 0.0038866 0.00092356 0.00041306
1.9225 0.0041057 0.0010108 0.0012845
1.9315 0.0026692 0.00054256 4.4993e-05
1.9405 0.0060832 0.0019006 0.00085059
1.9495 0.0046689 0.0015521 0.00068997
1.9585 0.0063236 0.0024015 0.00086921
1.9675 0.004231 0.0013503 0.00015927
1.9765 0.0045451 0.0015012 7.6279e-05
1.9855 0.0035167 0.001135 5.9238e-05
1.9945 0.00301 0.00094544 5.0794e-05
2.0035 0.0055575 0.0021054 0.00031931
2.0125 0.0027596 0.00086892 5.6303e-05
2.0215 0.0034452 0.0010572 5.8255e-05
2.0305 0.002653 0.00090573 4.4489e-05
2.0395 0.0037481 0.0016717 6.291e-05
2.0485 0.0024305 0.00083217 4.0887e-05
2.0575 0.0027306 0.0010176 4.615e-05
2.0665 0.0021407 0.00067942 3.6265e-05
2.0755 0.0020291 0.00064584 3.4359e-05
2.0845 0.0019194 0.00059061 3.2066e-05
2.0935 0.0016815 0.00054411 2.8171e-05
2.1025 0.0012985 0.00040437 2.183e-05
2.1115 0.0055961 0.002938 9.4245e-05
2.1205 0.0018146 0.00059901 3.0656e-05
2.1295 0.0014942 0.00050369 2.5319e-05
2.1385 0.0043376 0.0020547 7.2694e-05
2.1475 0.002355 0.00098266 3.9366e-05
2.1565 0.0044166 0.0020844 7.3925e-05
2.1655 0.0020264 0.00085333 3.4047e-05
2.1745 0.0015365 0.00058628 2.5871e-05
2.1835 0.0024802 0.0011034 4.1973e-05
2.1925 0.00097714 0.00032794 1.6524e-05
2.2015 0.0007906 0.00026391 1.3225e-05
2.2105 0.0020375 0.00084785 3.4117e-05
2.2195 0.0012662 0.00051692 2.1311e-05
2.2285 0.0015904 0.00067454 2.6747e-05
2.2375 0.0020952 0.0010231 3.5344e-05
2.2465 0.00078771 0.00029088 1.3362e-05
2.2555 0.0010109 0.00042001 1.7108e-05
2.2645 0.0028878 0.0017727 4.8296e-05
2.2735 0.0014127 0.0006476 2.3671e-05
2.2825 0.0025247 0.0013495 4.2392e-05
2.2915 0.00090791 0.00040442 1.5276e-05
2.3005 0.0025355 0.0015605 4.2826e-05
2.3095 0.0016087 0.00088497 2.7256e-05
2.3185 0.0015486 0.00098522 2.6298e-05
2.3275 0.0018701 0.0010131 3.1443e-05
2.3365 0.00086547 0.00038266 1.4557e-05
2.3455 0.0020845 0.0012906 3.5153e-05
2.3545 0.0010515 0.00045169 1.7743e-05
2.3635 0.0012788 0.00071067 2.1687e-05
2.3725 0.00088591 0.00045748 1.5053e-05
2.3815 0.0014494 0.00091668 2.4678e-05
2.3905 0.00085387 0.00040252 1.4497e-05
2.3995 0.00060567 0.00029893 1.0219e-05
2.4085 0.00034326 0.00016282 5.8154e-06
2.4175 0.00076451 0.00036303 1.2942e-05
2.4265 0.00079556 0.00045932 1.3526e-05
2.4355 0.0022158 0.0016564 3.7919e-05
2.4445 0.0012816 0.00081055 2.189e-05
2.4535 0.0006302 0.00030441 1.0797e-05
2.4625 0.00099187 0.00064025 1.6968e-05
2.4715 0.0011385 0.00072433 1.936e-05
2.4805 0.00040014 0.00020663 6.8805e-06
2.4895 0.00059077 0.00028537 1.0086e-05
2.5075 0.00045816 0.00022908 7.8549e-06
2.5255 0.00096307 0.00061686 1.6587e-05
2.5345 0.0010219 0.00065012 1.7558e-05
2.5525 0.00090386 0.00050229 1.5467e-05
2.5615 0.0007687 0.00050068 1.319e-05
2.5705 0.00051675 0.00030571 8.8975e-06
2.5795 0.00050958 0.00024615 8.7902e-06
2.5975 0.00019832 0.00012543 3.4555e-06
2.6065 0.00091314 0.00058094 1.5902e-05
2.6245 0.00041924 0.00022612 7.242e-06
2.6335 0.00051729 0.00030203 8.9777e-06
2.6425 0.00027855 0.00017981 4.8307e-06
2.6515 0.00050424 0.00029441 8.7581e-06
2.6605 0.00072429 0.0005726 1.2664e-05
2.6695 0.00035769 0.00025292 6.3745e-06
2.6785 0.00035334 0.00021637 6.2017e-06
2.6875 0.00047999 0.00028026 8.4357e-06
2.7055 0.00036928 0.00018226 6.4569e-06
2.7145 0.00092651 0.00071222 1.6211e-05
2.7415 0.00065109 0.00051474 1.1461e-05
2.7505 0.00024145 0.00022041 1.0433e-05
2.7685 0.00078734 0.00060987 1.4049e-05
2.7775 0.00054521 0.00043714 9.6474e-06
2.7865 0.0003853 0.00032236 6.795e-06
