Measurement E34M19

You are not logged in.

Experiment: E2A run CLAS data, 2010

Spokespersons: M. Osipenko

Publication:

M.Osipenko, G. Ricco, S.Simula, M.Ripani, M.Taiuti, and CLAS Collaboration Measurement of the Nucleon Structure Function F₂ in the Nuclear Medium and Evaluation of its Moments // NPA 845, 1 (2010)

Quantity measured: F₂, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none

Q² :	1.15 GeV²
W :	0.3764651 — 2.267623 GeV
x_b :	0.2125 — 2.7955

Observable quantity measured (Y axis): F₂, dimensionless

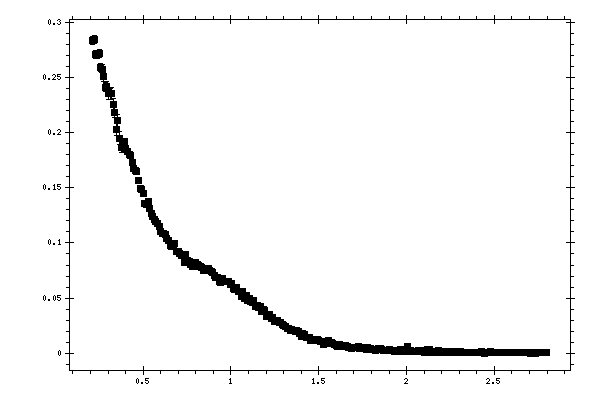

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x, dimensionless	F₂, dimensionless	Data errors, dimensionless	Systematic errors, dimensionless
0.2125	0.28374	0.0031977	0.029012
0.2215	0.28466	0.0032688	0.028356
0.2305	0.27086	0.0035293	0.027704
0.2395	0.27058	0.0035279	0.026659
0.2485	0.27152	0.003602	0.027037
0.2575	0.25896	0.0037878	0.026139
0.2665	0.2578	0.0041456	0.026075
0.2755	0.2508	0.0043825	0.025271
0.2845	0.24148	0.0044667	0.02533
0.2935	0.24176	0.0046132	0.024847
0.3025	0.23541	0.0049139	0.026315
0.3115	0.2354	0.0051483	0.024477
0.3205	0.23533	0.0054012	0.023806
0.3295	0.22593	0.005549	0.02468
0.3385	0.21863	0.0051221	0.023877
0.3475	0.20281	0.0053557	0.024345
0.3565	0.21078	0.005532	0.031436
0.3655	0.19518	0.0059183	0.024661
0.3745	0.18631	0.0043014	0.017249
0.3835	0.1904	0.0030533	0.02205
0.3925	0.1917	0.0025143	0.020059
0.4015	0.18595	0.0021832	0.018143
0.4105	0.18342	0.001972	0.017731
0.4195	0.17989	0.0018169	0.017295
0.4285	0.17915	0.0017804	0.016986
0.4375	0.17313	0.0017343	0.016462
0.4465	0.16758	0.0017015	0.015835
0.4555	0.1661	0.0017237	0.015662
0.4645	0.16465	0.0017557	0.015395
0.4735	0.15711	0.001698	0.014378
0.4825	0.14952	0.0016451	0.013789
0.4915	0.14836	0.0016759	0.013958
0.5005	0.14484	0.0016794	0.014179
0.5095	0.13582	0.0016051	0.013016
0.5185	0.13527	0.0016477	0.012925
0.5275	0.13767	0.0017376	0.013377
0.5365	0.13166	0.0017042	0.01201
0.5455	0.1269	0.0016794	0.011681
0.5545	0.12411	0.0016801	0.011252
0.5635	0.12092	0.0016602	0.010641
0.5725	0.11954	0.0016717	0.011129
0.5815	0.11768	0.0016798	0.010311
0.5905	0.11521	0.0016767	0.010216
0.5995	0.11034	0.001637	0.0095307
0.6085	0.10847	0.0016293	0.0091148
0.6175	0.1089	0.0016726	0.0089652
0.6265	0.10794	0.0016929	0.0089896
0.6355	0.10378	0.0016422	0.0081779
0.6445	0.10186	0.0016608	0.0087086
0.6535	0.09733	0.0015881	0.0072896
0.6625	0.096811	0.0016245	0.0069276
0.6715	0.098222	0.0016776	0.0073119
0.6805	0.099552	0.001737	0.0062509
0.6895	0.091973	0.0016115	0.0056496
0.6985	0.092168	0.001637	0.0053142
0.7075	0.090125	0.001625	0.0050021
0.7165	0.088551	0.0016311	0.0049184
0.7255	0.088747	0.0016586	0.0052485
0.7345	0.08246	0.0015708	0.0042604
0.7435	0.089204	0.0017213	0.0053873
0.7525	0.084017	0.001645	0.0047276
0.7615	0.083179	0.0016494	0.0036661
0.7705	0.080583	0.0016254	0.003653
0.7795	0.078742	0.0016019	0.0047691
0.7885	0.078462	0.0016347	0.0037532
0.7975	0.081954	0.0017319	0.0036495
0.8065	0.080346	0.0017478	0.0039659
0.8155	0.079739	0.0017361	0.0059578
0.8245	0.078762	0.0017238	0.00276
0.8335	0.077467	0.0017146	0.0041924
0.8425	0.075258	0.0016787	0.0026785
0.8515	0.076431	0.001737	0.0028046
0.8605	0.074572	0.0017119	0.0019643
0.8695	0.076427	0.001794	0.0031339
0.8785	0.074874	0.0017622	0.0020446
0.8875	0.07431	0.0017815	0.0042873
0.8965	0.072809	0.0017441	0.0043797
0.9055	0.070515	0.0017233	0.0036422
0.9145	0.069059	0.0016955	0.00399
0.9235	0.068615	0.0017245	0.0037478
0.9325	0.065312	0.0016407	0.0017884
0.9415	0.064141	0.0016364	0.0034144
0.9505	0.06749	0.0017569	0.002328
0.9595	0.065471	0.0017283	0.0058694
0.9685	0.065406	0.0017618	0.0028089
0.9775	0.06459	0.0017618	0.0052399
0.9865	0.065306	0.0017903	0.0049798
0.9955	0.062702	0.0017458	0.0020612
1.0045	0.063235	0.0018012	0.0034614
1.0135	0.058527	0.0016535	0.0033946
1.0225	0.05767	0.0016687	0.0058158
1.0315	0.059795	0.0017528	0.0021022
1.0405	0.055579	0.0016264	0.0040912
1.0495	0.055585	0.0016599	0.0026641
1.0585	0.051567	0.0015496	0.0029559
1.0675	0.055942	0.001741	0.0029276
1.0765	0.049634	0.0015377	0.0017669
1.0855	0.052257	0.0016647	0.0016098
1.0945	0.048167	0.001528	0.0025409
1.1035	0.049664	0.0016284	0.0029185
1.1125	0.046436	0.0015223	0.002254
1.1215	0.046175	0.0015455	0.0032246
1.1305	0.047403	0.0016391	0.0026583
1.1395	0.042066	0.0014634	0.00085139
1.1485	0.0433	0.0015301	0.0027317
1.1575	0.041616	0.0015032	0.0011347
1.1665	0.04242	0.0015719	0.0023813
1.1755	0.037498	0.0013902	0.0017344
1.1845	0.039608	0.001532	0.0020443
1.1935	0.038297	0.0014911	0.00098958
1.2025	0.032995	0.0012935	0.0010272
1.2115	0.035159	0.0014358	0.002869
1.2205	0.035308	0.001438	0.0021011
1.2295	0.031563	0.0013222	0.001702
1.2385	0.032254	0.0013791	0.0015108
1.2475	0.029074	0.0012543	0.00056956
1.2565	0.029697	0.0012906	0.0026548
1.2655	0.029934	0.0013649	0.00088673
1.2745	0.028138	0.0013316	0.0015377
1.2835	0.028224	0.0013517	0.0012721
1.2925	0.025812	0.0012296	0.0013159
1.3015	0.024678	0.0012154	0.0017304
1.3105	0.024487	0.0012251	0.0016745
1.3195	0.022681	0.0011489	0.0020895
1.3285	0.022081	0.0011344	0.0017021
1.3375	0.02068	0.0011182	0.00055635
1.3465	0.021053	0.0011832	0.0013948
1.3555	0.020172	0.0011397	0.0043906
1.3645	0.019973	0.0011496	0.00079483
1.3735	0.020118	0.0012024	0.00095777
1.3825	0.019508	0.0012117	0.0011671
1.3915	0.01827	0.0011081	0.0017724
1.4005	0.015013	0.00093795	0.0007466
1.4095	0.017816	0.0011735	0.00090414
1.4185	0.016652	0.0011224	0.00098333
1.4275	0.014561	0.00099043	0.0012086
1.4365	0.014127	0.00098681	0.001319
1.4455	0.014179	0.0010344	0.00025672
1.4545	0.011805	0.00084695	0.00094745
1.4635	0.012739	0.0009813	0.0010336
1.4725	0.011398	0.00087582	0.00082845
1.4815	0.011385	0.00089195	0.00070021
1.4905	0.01263	0.0010391	0.00092517
1.4995	0.011495	0.00098053	0.00041836
1.5085	0.010415	0.0008827	0.00029082
1.5175	0.01075	0.00092421	0.0016632
1.5265	0.0082276	0.00071085	0.0012598
1.5355	0.0089676	0.00081079	0.00045748
1.5445	0.0099186	0.00096102	0.0014384
1.5535	0.011501	0.0012101	0.00035983
1.5625	0.0096262	0.0010063	0.001887
1.5715	0.0097253	0.0010004	0.0001785
1.5805	0.0086955	0.00089552	0.00043664
1.5895	0.0078572	0.00083453	0.0012939
1.5985	0.0073915	0.00081967	0.0007669
1.6075	0.0062009	0.00064773	0.0002543
1.6165	0.0075147	0.00088286	0.0012898
1.6255	0.006638	0.00078817	0.0008513
1.6345	0.0067245	0.00079543	0.0011113
1.6435	0.0062306	0.00074743	0.0015977
1.6525	0.0069516	0.00094112	0.00082549
1.6615	0.0056331	0.00071388	0.00039157
1.6705	0.0052281	0.00067682	0.00075962
1.6795	0.0050176	0.00065279	0.0012155
1.6885	0.0043711	0.00062759	0.00088635
1.6975	0.0055107	0.00078976	0.0001079
1.7065	0.0049469	0.00072574	0.00025643
1.7155	0.0053517	0.00079861	0.00047883
1.7245	0.0056703	0.00089054	0.0011972
1.7335	0.0044789	0.00069322	0.00074681
1.7425	0.0049914	0.00086538	0.0005187
1.7515	0.0043224	0.00070299	0.00092037
1.7605	0.0041624	0.00069026	0.00024311
1.7695	0.0037302	0.0006588	0.00057227
1.7785	0.0051818	0.00097334	9.12e-05
1.7875	0.0030674	0.00049963	0.0010633
1.7965	0.0044889	0.00086008	0.00014671
1.8055	0.0033589	0.00060959	0.00043827
1.8145	0.0031941	0.00058755	0.00020273
1.8235	0.0026316	0.00047557	0.00067052
1.8325	0.0034585	0.00072404	0.00058725
1.8415	0.0038845	0.00077419	0.0008507
1.8505	0.0046846	0.0010629	0.00019418
1.8595	0.0029504	0.00060951	7.5044e-05
1.8685	0.0028461	0.00065704	4.9424e-05
1.8775	0.0020346	0.0004153	3.533e-05
1.8865	0.0026689	0.00060266	4.6433e-05
1.8955	0.0025439	0.00059945	4.3988e-05
1.9045	0.0034327	0.00093912	5.9389e-05
1.9135	0.0022707	0.00051528	3.9235e-05
1.9225	0.0020102	0.00046059	3.4786e-05
1.9315	0.0017919	0.00040644	3.081e-05
1.9405	0.0026236	0.00068365	4.5129e-05
1.9495	0.0020709	0.0005357	3.5636e-05
1.9585	0.0017621	0.00050377	3.044e-05
1.9675	0.0028778	0.00090313	4.9323e-05
1.9765	0.002368	0.00065209	4.0573e-05
1.9855	0.0016102	0.00041101	2.7608e-05
1.9945	0.001995	0.00061524	3.4249e-05
2.0035	0.0063824	0.002697	0.0001091
2.0125	0.0014006	0.00038951	2.3915e-05
2.0215	0.0020019	0.00061155	3.4165e-05
2.0305	0.0016864	0.00054318	2.8936e-05
2.0395	0.0012941	0.00035912	2.2105e-05
2.0485	0.0010797	0.0003364	1.8436e-05
2.0575	0.0016907	0.00059108	2.8898e-05
2.0665	0.0027326	0.0011876	4.6585e-05
2.0755	0.0020148	0.00069076	3.4339e-05
2.0845	0.0012475	0.00042473	2.1176e-05
2.0935	0.0022578	0.00080622	3.8353e-05
2.1025	0.0009476	0.00029333	1.6113e-05
2.1115	0.00081087	0.00021914	1.3793e-05
2.1205	0.0032398	0.0015157	5.5146e-05
2.1295	0.0031953	0.0016703	5.4249e-05
2.1385	0.00072297	0.00022862	1.228e-05
2.1475	0.0018496	0.00075038	3.1423e-05
2.1565	0.0012527	0.0005227	2.1532e-05
2.1655	0.00049567	0.00016431	8.4202e-06
2.1745	0.00092463	0.00034887	1.5774e-05
2.1835	0.0021123	0.0012906	3.6861e-05
2.1925	0.0017794	0.00084925	3.0226e-05
2.2015	0.00045799	0.00017893	7.8196e-06
2.2105	0.00063498	0.00023506	1.0854e-05
2.2285	0.0012326	0.00067	2.0967e-05
2.2375	0.0006293	0.0002583	1.0748e-05
2.2465	0.0012831	0.00056578	2.1864e-05
2.2555	0.0013793	0.00066191	2.3398e-05
2.2645	0.0015662	0.00096143	2.6581e-05
2.2735	0.00053271	0.00020822	9.0498e-06
2.2825	0.00068389	0.00031658	1.1673e-05
2.2915	0.00051891	0.00022943	8.8158e-06
2.3005	0.00065486	0.00030314	1.1151e-05
2.3095	0.0010625	0.00051448	1.8069e-05
2.3185	0.00073999	0.00029162	1.2593e-05
2.3275	0.00087863	0.00039294	1.498e-05
2.3365	0.00045915	0.00017947	7.8252e-06
2.3455	0.00042188	0.00020379	7.2011e-06
2.3545	0.001034	0.00055681	1.7672e-05
2.3635	0.00037081	0.00016804	6.3307e-06
2.3725	0.00050918	0.00026087	8.7567e-06
2.3815	0.00062442	0.00031221	1.0669e-05
2.3995	0.00080191	0.00050452	1.3805e-05
2.4085	0.00046747	0.00021891	8.0281e-06
2.4175	0.0003866	0.00018507	6.6389e-06
2.4265	0.001068	0.00080398	1.8435e-05
2.4355	0.00039641	0.00018824	6.7976e-06
2.4445	0.00010312	5.569e-05	1.8382e-06
2.4625	0.00057575	0.00036877	9.9982e-06
2.4715	0.0010452	0.00078389	1.8027e-05
2.4805	0.0010922	0.00081648	1.8806e-05
2.5075	0.00069369	0.00043441	1.2017e-05
2.5165	0.00040971	0.00020844	7.1009e-06
2.5255	0.0008898	0.00066982	1.5463e-05
2.5435	0.00027616	0.000147	4.8528e-06
2.5525	0.00085013	0.00063995	1.4784e-05
2.5615	0.00022336	0.00013678	4.077e-06
2.5795	0.00016271	8.5757e-05	2.8527e-06
2.5885	0.00028517	0.00019306	5.0179e-06
2.5975	0.00068536	0.00052057	1.2036e-05
2.6065	0.00025996	0.00015379	4.576e-06
2.6155	0.00035898	0.00028782	6.5563e-06
2.6245	0.00025295	0.00014965	4.4845e-06
2.6335	0.00046587	0.00029639	8.1914e-06
2.6515	0.00032409	0.00021334	5.7256e-06
2.6875	0.00025412	0.00014837	4.4737e-06
2.6965	0.00041074	0.00032109	7.26e-06
2.7055	0.00015028	0.00010975	2.7921e-06
2.7145	0.00035635	0.00028172	6.3056e-06
2.7325	0.000116	8.8597e-05	2.5617e-06
2.7415	0.00064494	0.0004855	1.1572e-05
2.7505	0.00025503	0.00020823	4.5613e-06
2.7595	0.00025214	0.00020587	4.5323e-06
2.7685	0.00024933	0.00016622	4.5164e-06
2.7775	0.00049315	0.00037665	8.8737e-06
2.7955	0.00016083	8.8091e-05	2.9018e-06
