Measurement E34M33

You are not logged in.

Experiment: E2A run CLAS data, 2010

Spokespersons: M. Osipenko

Publication:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.55 GeV2
W : 0 — 2.010333 GeV
xb : 0.4465 — 1.7695

Observable quantity measured (Y axis): F2, dimensionless

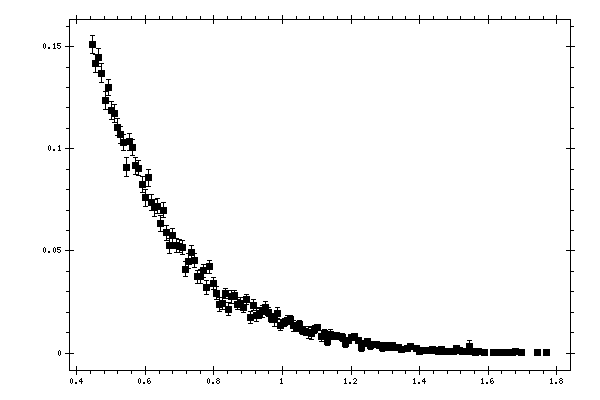

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.4465 0.15093 0.0043691 0.01575
0.4555 0.14173 0.0046013 0.015524
0.4645 0.14464 0.0044549 0.014745
0.4735 0.1371 0.0044754 0.013825
0.4825 0.12368 0.0045854 0.012979
0.4915 0.13002 0.0040659 0.013282
0.5005 0.1189 0.0043649 0.011885
0.5095 0.11744 0.0044005 0.011651
0.5185 0.1105 0.0041112 0.012272
0.5275 0.10679 0.0043254 0.012287
0.5365 0.10304 0.0039543 0.010756
0.5455 0.091071 0.0045778 0.010545
0.5545 0.10341 0.0042572 0.010692
0.5635 0.10064 0.0038141 0.011776
0.5725 0.091755 0.0041451 0.010221
0.5815 0.090554 0.0037308 0.0096253
0.5905 0.082537 0.0040411 0.0087663
0.5995 0.075977 0.0043221 0.0086414
0.6085 0.085818 0.004227 0.0092226
0.6175 0.073784 0.0040029 0.010905
0.6265 0.071044 0.0039353 0.0099852
0.6355 0.071885 0.0035886 0.0082394
0.6445 0.063651 0.003877 0.0085467
0.6535 0.069969 0.0035389 0.0080676
0.6625 0.058955 0.0035804 0.0084632
0.6715 0.052449 0.0036979 0.0056204
0.6805 0.057359 0.0034554 0.0055625
0.6895 0.052865 0.00343 0.0070487
0.6985 0.052406 0.0030191 0.0056993
0.7075 0.051708 0.0034497 0.0053371
0.7165 0.04105 0.0036804 0.0053331
0.7255 0.045092 0.0035529 0.0045521
0.7345 0.04912 0.0034109 0.0070494
0.7435 0.045311 0.0033055 0.0051603
0.7525 0.03732 0.0033406 0.0065828
0.7615 0.037529 0.0032184 0.0056464
0.7705 0.040335 0.0031077 0.0036699
0.7795 0.031966 0.0033518 0.0026834
0.7885 0.042341 0.0031986 0.0040412
0.7975 0.034039 0.0028136 0.0058918
0.8065 0.029317 0.0032884 0.003034
0.8155 0.02385 0.0033537 0.0025591
0.8245 0.024467 0.0029206 0.002978
0.8335 0.029 0.0024245 0.0031119
0.8425 0.021589 0.0029546 0.0027401
0.8515 0.027494 0.0031041 0.0036639
0.8605 0.028449 0.0023582 0.0018967
0.8695 0.023817 0.0025306 0.0050447
0.8785 0.024154 0.0029471 0.0019064
0.8875 0.0224 0.0025629 0.003986
0.8965 0.026259 0.0022802 0.004741
0.9055 0.017475 0.0027485 0.0022808
0.9145 0.023484 0.0025803 0.0034556
0.9235 0.018507 0.0031008 0.0034955
0.9325 0.019636 0.0025325 0.0010259
0.9415 0.020405 0.0028699 0.0016442
0.9505 0.022582 0.0027467 0.00394
0.9595 0.019975 0.0022093 0.0075569
0.9685 0.016905 0.0019502 0.0058273
0.9775 0.016271 0.0030522 0.0018031
0.9865 0.019627 0.0027156 0.0050094
0.9955 0.013772 0.0028569 0.0010999
1.0045 0.015106 0.0019208 0.0038719
1.0135 0.016212 0.0023735 0.0038369
1.0225 0.016321 0.0020699 0.001738
1.0315 0.013424 0.0026331 0.0022966
1.0405 0.012314 0.0017776 0.0035418
1.0495 0.014019 0.0020612 0.00039585
1.0585 0.011184 0.0019238 0.0031397
1.0675 0.01079 0.0023504 0.0019671
1.0765 0.0099927 0.002841 0.0030933
1.0855 0.00962 0.0030025 0.0041975
1.0945 0.011525 0.001982 0.0018941
1.1035 0.012556 0.0016882 0.001714
1.1125 0.0083187 0.0026694 0.00043132
1.1215 0.0096996 0.0019936 0.00085764
1.1305 0.0054797 0.0015419 0.003061
1.1395 0.0093297 0.0020184 0.0017992
1.1485 0.007969 0.0012381 0.0015028
1.1575 0.0083892 0.0019052 0.0022661
1.1665 0.0083147 0.0013404 0.0011639
1.1755 0.0076633 0.002051 0.0012325
1.1845 0.0049196 0.0021877 0.001291
1.1935 0.0063567 0.0011478 0.0020728
1.2025 0.0076059 0.0014949 0.0015658
1.2115 0.0079432 0.0014311 0.0023605
1.2205 0.0063113 0.0011402 0.0016842
1.2295 0.0029965 0.0023183 0.0011931
1.2385 0.0049357 0.0010704 0.0029627
1.2475 0.005572 0.0012033 0.0010444
1.2565 0.0035967 0.0020561 0.00027367
1.2745 0.004029 0.00092676 0.00099146
1.2835 0.0038556 0.0010088 0.00019507
1.2925 0.0025187 0.00168 0.00031777
1.3015 0.0036221 0.00091552 0.00047635
1.3105 0.0029604 0.00073317 0.00098799
1.3195 0.0037376 0.0010424 0.00037912
1.3285 0.0025393 0.00072996 0.0014943
1.3375 0.002604 0.0007824 0.00081494
1.3465 0.0015597 0.00051053 0.00026133
1.3645 0.0022787 0.00074159 0.00032788
1.3735 0.0030966 0.0011675 5.2001e-05
1.3915 0.0020374 0.00095517 0.0029109
1.4005 0.00056246 0.00030289 0.00084374
1.4095 0.0013457 0.00060433 0.0005772
1.4185 0.0013667 0.00054858 2.3077e-05
1.4275 0.0011612 0.00052148 0.00016706
1.4365 0.0018335 0.00090355 0.00026377
1.4455 0.0012174 0.00052716 2.0172e-05
1.4545 0.00079959 0.00037969 1.3235e-05
1.4635 0.0017258 0.00077571 0.00038454
1.4725 0.00098268 0.00049134 0.00065535
1.4815 0.00068738 0.00046536 0.00022938
1.4905 0.00062194 0.00036313 0.00062202
1.4995 0.00079866 0.00043745 0.00016027
1.5085 0.0020905 0.0012241 0.001195
1.5175 0.0011973 0.00066609 0.00079845
1.5265 0.00083217 0.00040235 0.00023814
1.5355 0.0010209 0.00061819 0.0012252
1.5445 0.0034457 0.0028134 0.00057715
1.5535 0.00095805 0.00046553 0.00059898
1.5625 0.00040497 0.00033883 0.00080998
1.5715 0.00063477 0.00040974 0.00015903
1.5895 0.00050676 0.00037008 0.0001691
1.6165 0.00042689 0.00031175 6.916e-06
1.6255 0.00044863 0.00040954 0.00022443
1.6435 0.00045244 0.00034556 0.0004525
1.6615 0.00021698 0.00018154 3.4989e-06
1.6705 0.00038619 0.00029496 0.00012887
1.6795 0.00073331 0.00066942 0.0002447
1.6975 0.00033115 0.00025292 0.0001105
1.7425 0.00017239 0.0001493 8.6242e-05
1.7695 0.00029854 0.00029854 0.00014935
