Measurement E34M35

You are not logged in.

Experiment: E2A run CLAS data, 2010

Spokespersons: M. Osipenko

Publication:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none

Q2 : 2.75 GeV2
W : 0 — 2.012634 GeV
xb : 0.4645 — 1.7515

Observable quantity measured (Y axis): F2, dimensionless

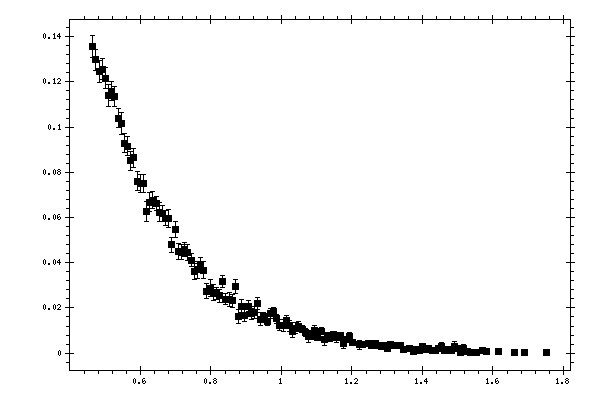

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.4645 0.13566 0.0046961 0.013633
0.4735 0.12973 0.0045723 0.013325
0.4825 0.12445 0.0048483 0.012442
0.4915 0.1255 0.0046548 0.013687
0.5005 0.12165 0.0046645 0.015172
0.5095 0.11396 0.0046737 0.011785
0.5185 0.11592 0.0043662 0.011666
0.5275 0.1134 0.0044163 0.01198
0.5365 0.10398 0.0043718 0.011034
0.5455 0.10157 0.0047392 0.011613
0.5545 0.092902 0.004231 0.0098766
0.5635 0.091584 0.0041528 0.0095537
0.5725 0.085039 0.004305 0.0091236
0.5815 0.086479 0.004156 0.0088438
0.5905 0.076106 0.0042343 0.010173
0.5995 0.074893 0.0040159 0.0092083
0.6085 0.07503 0.0038837 0.007485
0.6175 0.062602 0.0043544 0.0067646
0.6265 0.066741 0.0042137 0.0067932
0.6355 0.067633 0.0037544 0.0067653
0.6445 0.066246 0.0031339 0.0093577
0.6535 0.062425 0.0040232 0.008004
0.6625 0.061802 0.003686 0.0065044
0.6715 0.059774 0.0034979 0.0080542
0.6805 0.059596 0.003806 0.0079704
0.6895 0.047869 0.0034521 0.0072468
0.6985 0.054611 0.0035045 0.0053266
0.7075 0.044859 0.0035267 0.0048959
0.7165 0.044624 0.0033175 0.0058846
0.7255 0.045683 0.0031057 0.0064101
0.7345 0.044623 0.0034666 0.0078888
0.7435 0.041156 0.0028583 0.0051563
0.7525 0.036289 0.0035735 0.0052333
0.7615 0.036826 0.0036445 0.0041783
0.7705 0.039251 0.0031898 0.0041207
0.7795 0.036776 0.0035563 0.0048034
0.7885 0.027483 0.0031711 0.0045391
0.7975 0.028713 0.0037235 0.0023253
0.8065 0.026906 0.0036048 0.0030646
0.8155 0.026303 0.002589 0.0038648
0.8245 0.025283 0.0030811 0.0029479
0.8335 0.031827 0.0026891 0.0042463
0.8425 0.023946 0.0023907 0.0044928
0.8515 0.023861 0.0031483 0.0034573
0.8605 0.02311 0.0029718 0.0028193
0.8695 0.029402 0.003018 0.0031374
0.8785 0.016077 0.003171 0.0043603
0.8875 0.020727 0.0027956 0.0027107
0.8965 0.016728 0.0029304 0.0020247
0.9055 0.020797 0.002415 0.0026855
0.9145 0.017494 0.0024161 0.0026491
0.9235 0.017964 0.0026622 0.0022393
0.9325 0.022068 0.0026323 0.0023647
0.9415 0.014974 0.0028126 0.0026244
0.9505 0.016157 0.0016123 0.0026613
0.9595 0.014162 0.0020292 0.0011286
0.9685 0.017526 0.0021469 0.0020807
0.9775 0.01831 0.0019016 0.0017263
0.9865 0.015167 0.0019741 0.0034071
0.9955 0.012394 0.0025688 0.0015714
1.0045 0.012258 0.0027301 0.0024796
1.0135 0.014245 0.0024346 0.0020555
1.0225 0.01207 0.0023454 0.0028126
1.0315 0.0096553 0.0025917 0.0030308
1.0405 0.011102 0.002466 0.0018108
1.0495 0.011937 0.0020633 0.0041023
1.0585 0.010661 0.0014143 0.0021926
1.0675 0.0091195 0.0017963 0.0016119
1.0765 0.0072517 0.0027477 0.0022658
1.0855 0.0076658 0.0018305 0.0019219
1.0945 0.009818 0.0022151 0.0019027
1.1035 0.0071359 0.0017566 0.0016338
1.1125 0.009708 0.0015612 0.0012225
1.1215 0.0060729 0.0027288 0.0011618
1.1305 0.0071944 0.0017901 0.0024832
1.1395 0.0069886 0.0018264 0.0017272
1.1485 0.0082339 0.0013723 0.0014222
1.1575 0.0067444 0.0019714 0.0020327
1.1665 0.0075819 0.0013426 0.0027702
1.1755 0.0041222 0.0022008 0.00012194
1.1845 0.0059363 0.001203 0.00035083
1.1935 0.0075104 0.0014582 0.0017101
1.2025 0.0046171 0.0010244 0.00094469
1.2205 0.0037425 0.0020432 6.8802e-05
1.2295 0.003942 0.00096676 0.00082429
1.2475 0.0044355 0.0012409 0.0002468
1.2565 0.0035617 0.00094794 0.0011889
1.2655 0.0042071 0.0011337 0.0007686
1.2745 0.0035781 0.00094901 0.00051533
1.2835 0.0030014 0.00084556 0.00050322
1.2925 0.0032686 0.0011103 0.0017611
1.3015 0.0020891 0.00069883 0.00052358
1.3105 0.0037818 0.0012206 0.00024571
1.3195 0.0033002 0.0010862 0.0008821
1.3375 0.0033134 0.0010887 0.000624
1.3465 0.0017612 0.0006629 0.00052927
1.3645 0.0020755 0.00091986 0.00026197
1.3735 0.00094175 0.00040271 0.00023601
1.3825 0.0016415 0.00064129 0.00032954
1.3915 0.0013336 0.00046543 0.00077825
1.4005 0.0029147 0.0012167 5.0603e-05
1.4095 0.0015894 0.00067908 0.00070692
1.4185 0.0020837 0.00091041 0.00021145
1.4275 0.0011819 0.00065921 0.0011821
1.4365 0.0009878 0.0004939 0.00016555
1.4455 0.0020649 0.0010034 0.0004602
1.4545 0.0031283 0.0015877 0.0019916
1.4635 0.0012986 0.0005837 0.00028941
1.4725 0.0014772 0.00078958 0.00021259
1.4815 0.00098244 0.00057526 0.00098259
1.4905 0.0029899 0.0020632 0.00085573
1.4995 0.0019921 0.0014548 3.3898e-05
1.5085 0.00030459 0.00019839 0.00010312
1.5175 0.0020897 0.0018097 0.00209
1.5265 0.00078294 0.00052521 0.00015715
1.5355 0.00030597 0.00024982 5.1759e-06
1.5445 0.00034481 0.00028848 0.00034486
1.5535 0.00032413 0.00027119 0.0008104
1.5715 0.0010774 0.0009835 0.00071851
1.5805 0.00058064 0.00032304 0.00019377
1.6165 0.00054087 0.00044162 0.00018052
1.6615 0.00027654 0.00025245 0.00013835
1.6885 0.00023743 0.00021674 0.00023746
1.7515 0.00025241 0.00025241 0.00025244
