Measurement E34M38

You are not logged in.

Experiment: E2A run CLAS data, 2010

Spokespersons: M. Osipenko

Publication:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none

Q2 : 3.05 GeV2
W : 0 — 1.926838 GeV
xb : 0.5185 — 1.6165

Observable quantity measured (Y axis): F2, dimensionless

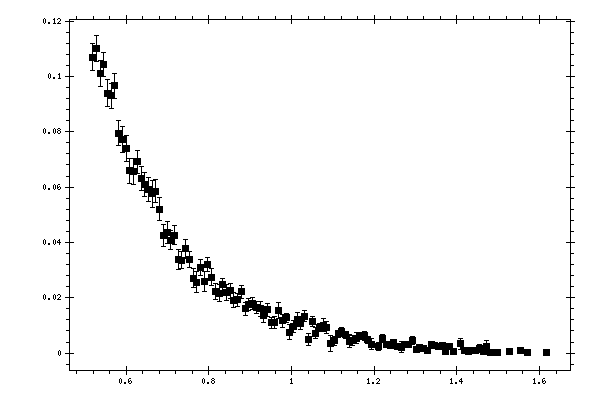

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.5185 0.107 0.0047456 0.0125
0.5275 0.10995 0.0046958 0.011562
0.5365 0.10104 0.0047085 0.010507
0.5455 0.10439 0.0042876 0.011124
0.5545 0.093901 0.0048984 0.0093241
0.5635 0.09292 0.0046103 0.010884
0.5725 0.096602 0.0045286 0.010912
0.5815 0.07952 0.0046068 0.0090183
0.5905 0.077296 0.0047333 0.0085418
0.5995 0.073881 0.0046079 0.0076627
0.6085 0.065825 0.0044944 0.00804
0.6175 0.065691 0.0045942 0.007029
0.6265 0.069097 0.0042617 0.010424
0.6355 0.062984 0.0043806 0.0063092
0.6445 0.060949 0.0042009 0.006431
0.6535 0.059182 0.0043307 0.0073779
0.6625 0.057539 0.00477 0.006837
0.6715 0.058526 0.0041542 0.0066565
0.6805 0.052032 0.0040421 0.0073644
0.6895 0.042448 0.0038917 0.0050252
0.6985 0.043589 0.0039295 0.0053441
0.7075 0.040833 0.0033525 0.0071549
0.7165 0.042658 0.0033304 0.0043919
0.7255 0.033689 0.0036326 0.0043242
0.7345 0.033543 0.0030222 0.0050451
0.7435 0.037645 0.0033506 0.0046624
0.7525 0.033843 0.0028614 0.0052427
0.7615 0.027135 0.0034581 0.0029834
0.7705 0.025645 0.0038293 0.0030125
0.7795 0.03084 0.0028848 0.003043
0.7885 0.025947 0.003544 0.0022435
0.7975 0.031906 0.0025713 0.0035686
0.8065 0.027438 0.0029698 0.0027204
0.8155 0.022265 0.0028933 0.0025597
0.8245 0.021711 0.0030121 0.0019265
0.8335 0.024735 0.0023328 0.0029363
0.8425 0.022002 0.0029795 0.0021311
0.8515 0.022463 0.0028332 0.0037252
0.8605 0.019183 0.0028364 0.0039756
0.8695 0.019211 0.0023609 0.0016592
0.8785 0.022099 0.0024597 0.0036243
0.8875 0.016055 0.0022965 0.0012636
0.8965 0.017639 0.0021391 0.0051513
0.9055 0.017807 0.0021628 0.0054582
0.9145 0.016493 0.0022446 0.0025025
0.9235 0.015971 0.0028156 0.001282
0.9325 0.01369 0.0026995 0.0037523
0.9415 0.015685 0.0023901 0.0025433
0.9505 0.010975 0.0020548 0.0033956
0.9595 0.011039 0.0020737 0.0046716
0.9685 0.015454 0.0027858 0.0019984
0.9775 0.011724 0.0024157 0.0016222
0.9865 0.012758 0.0016473 0.0038935
0.9955 0.0075805 0.0028294 0.00044248
1.0045 0.0097165 0.0020865 0.0039465
1.0135 0.012298 0.0022175 0.0037872
1.0225 0.010872 0.0023045 0.0018544
1.0315 0.013382 0.0018706 0.00044225
1.0405 0.0048477 0.0020754 0.0049403
1.0495 0.011438 0.0016751 0.004025
1.0585 0.0072514 0.0018557 0.001561
1.0675 0.0093847 0.0014799 0.0015802
1.0765 0.010107 0.0023059 0.0018441
1.0855 0.0091923 0.0022575 0.0030466
1.0945 0.0034768 0.0027216 0.00091432
1.1035 0.0044062 0.0015268 0.0017438
1.1125 0.007016 0.0012539 0.0008326
1.1215 0.0079272 0.0014409 0.0017244
1.1305 0.0065718 0.0013706 0.0030757
1.1395 0.0043345 0.0023331 0.0011073
1.1485 0.004696 0.001853 0.0014294
1.1575 0.0053504 0.0020227 0.00083488
1.1665 0.0061255 0.0013237 0.00075345
1.1755 0.0062518 0.0015724 0.00070048
1.1845 0.0047851 0.0012095 0.0019964
1.1935 0.0031977 0.0019196 0.00086328
1.2115 0.0023468 0.0015555 0.0001086
1.2205 0.0052573 0.0013244 0.0014191
1.2295 0.0031805 0.00089289 0.00018772
1.2385 0.002653 0.00077691 0.0014932
1.2475 0.0039263 0.0011064 0.00021085
1.2565 0.0023865 0.0007782 0.00073578
1.2655 0.0021977 0.0021367 0.00023531
1.2745 0.0029583 0.0010616 0.00023457
1.2835 0.0032916 0.0010924 0.00044331
1.2925 0.0046923 0.0014838 0.0016448
1.3015 0.0013257 0.00057225 0.00094728
1.3105 0.002136 0.00088053 0.0026109
1.3195 0.0015338 0.00068879 2.9094e-05
1.3285 0.0010056 0.00043196 0.00014495
1.3375 0.0029754 0.0011057 0.0017011
1.3465 0.0026768 0.0011696 0.00080462
1.3555 0.0022261 0.0010006 4.1728e-05
1.3645 0.0028964 0.0010975 0.00038986
1.3735 0.00053385 0.00034194 0.00088983
1.3825 0.0023739 0.0010907 0.00071354
1.3915 0.00065795 0.00033976 0.00026346
1.4095 0.0033744 0.0020664 0.00042637
1.4185 0.00078065 0.00047805 0.00019569
1.4275 0.00060113 0.00031997 0.00036085
1.4365 0.0008339 0.0004754 1.5274e-05
1.4455 0.00092654 0.00070766 1.694e-05
1.4545 0.0017182 0.0015685 0.00057354
1.4635 0.00060785 0.00038099 1.1066e-05
1.4725 0.0024732 0.0020692 0.00049667
1.4815 0.00030727 0.00025089 0.00061457
1.4995 0.00040118 0.00034743 0.0001366
1.5265 0.00043994 0.0004016 0.00044001
1.5535 0.00082298 0.00075127 0.00054888
1.5715 0.00029273 0.00021378 0.00029278
1.6165 0.0003706 0.0003706 0.00055594
