Measurement E34M40

You are not logged in.

Experiment: E2A run CLAS data, 2010

Spokespersons: M. Osipenko

Publication:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none

Q2 : 3.25 GeV2
W : 0 — 1.843333 GeV
xb : 0.5635 — 1.6705

Observable quantity measured (Y axis): F2, dimensionless

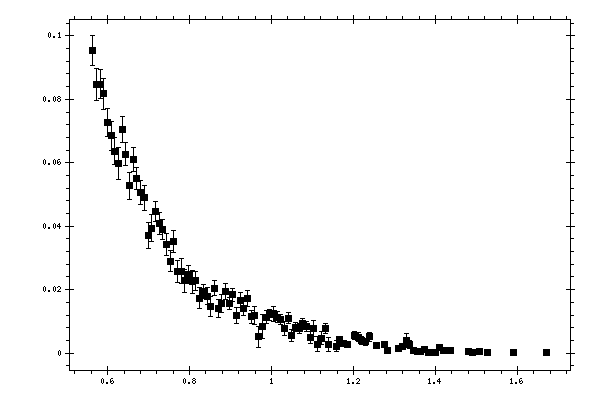

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.5635 0.095398 0.0046105 0.010429
0.5725 0.08472 0.0051255 0.010294
0.5815 0.084719 0.0045712 0.008759
0.5905 0.081707 0.0050088 0.010914
0.5995 0.07271 0.0044985 0.0078993
0.6085 0.068457 0.0046083 0.0076872
0.6175 0.063698 0.0042494 0.0086708
0.6265 0.059664 0.0050088 0.0066326
0.6355 0.070511 0.0041696 0.0090632
0.6445 0.062668 0.0036377 0.0088156
0.6535 0.052782 0.0043066 0.0061446
0.6625 0.060911 0.0037921 0.0072957
0.6715 0.054994 0.0035491 0.0068109
0.6805 0.050673 0.0038131 0.0059964
0.6895 0.048935 0.003878 0.0054197
0.6985 0.037129 0.0040738 0.0046523
0.7075 0.039362 0.0042866 0.0044227
0.7165 0.044626 0.0031577 0.006018
0.7255 0.040871 0.0034657 0.0046231
0.7345 0.038894 0.0031929 0.0061751
0.7435 0.034274 0.0035227 0.003583
0.7525 0.028965 0.0033805 0.0056783
0.7615 0.035177 0.0033297 0.0039103
0.7705 0.025803 0.003537 0.0024702
0.7795 0.025853 0.0039717 0.002634
0.7885 0.02275 0.0036122 0.0027358
0.7975 0.024687 0.0028522 0.0023555
0.8065 0.022551 0.0036526 0.0025943
0.8155 0.022809 0.0030354 0.0029899
0.8245 0.017378 0.0032267 0.0025785
0.8335 0.019418 0.0020986 0.0054636
0.8425 0.017946 0.0026112 0.0025882
0.8515 0.014778 0.0031587 0.0026541
0.8605 0.020445 0.0023265 0.0038251
0.8695 0.014151 0.0028756 0.0022252
0.8785 0.015784 0.0028379 0.0017219
0.8875 0.01944 0.0025075 0.0040752
0.8965 0.015569 0.0018391 0.0059799
0.9055 0.018404 0.0020964 0.0043001
0.9145 0.011811 0.0025838 0.0048903
0.9235 0.016657 0.0023286 0.0043232
0.9325 0.01399 0.0022132 0.0037474
0.9415 0.017295 0.0025284 0.0030742
0.9505 0.01147 0.001975 0.0049053
0.9595 0.011854 0.0028201 0.0013103
0.9685 0.0051502 0.0033059 0.0010539
0.9775 0.0082538 0.0037913 0.0011169
0.9865 0.011284 0.002041 0.0037221
0.9955 0.012123 0.0017289 0.0023591
1.0045 0.012427 0.0023821 0.0019268
1.0135 0.011332 0.001707 0.0018297
1.0225 0.010685 0.001528 0.0032676
1.0315 0.0077149 0.002278 0.0026972
1.0405 0.011003 0.0018016 0.0039195
1.0495 0.0055493 0.0018053 0.0023316
1.0585 0.0081308 0.0014551 0.0017984
1.0675 0.0078356 0.0015205 0.00044119
1.0765 0.0092583 0.0016511 0.0018759
1.0855 0.0084022 0.0014404 0.00073896
1.0945 0.0049249 0.0019964 0.0017398
1.1035 0.0077648 0.0023903 0.0029328
1.1125 0.0028166 0.0022952 0.0014556
1.1215 0.0047269 0.0019907 0.00082538
1.1305 0.0078854 0.0015598 0.0025181
1.1395 0.0027162 0.0021846 0.002216
1.1575 0.0022218 0.0016557 0.00011295
1.1665 0.0043246 0.0009372 9.6836e-05
1.1755 0.0028955 0.00076379 0.0021344
1.1845 0.0027284 0.0007605 0.00017117
1.2025 0.0055396 0.0013309 0.0024032
1.2115 0.0049848 0.0014183 0.0026132
1.2205 0.0038574 0.0012507 0.0015451
1.2295 0.0035254 0.0010387 0.00098216
1.2385 0.0050992 0.001559 0.0015335
1.2565 0.0024429 0.00089554 0.0017774
1.2745 0.0026472 0.00096663 0.00022704
1.2835 0.0007123 0.00038588 0.0016027
1.3105 0.0016142 0.00080712 0.0021525
1.3195 0.0021043 0.00079338 0.0007026
1.3285 0.0041265 0.0021749 0.0013778
1.3375 0.0027915 0.0012197 0.00051051
1.3465 0.00083478 0.00043491 0.00066803
1.3555 0.00053796 0.00034725 0.00071734
1.3645 0.00049574 0.00039192 0.0014873
1.3735 0.0012192 0.00078701 0.00061008
1.3825 0.00028112 0.00021471 0.00014067
1.4005 0.00031858 0.00024905 0.00015941
1.4095 0.0017572 0.000949 0.0013183
1.4185 0.00091272 0.0006971 0.00060877
1.4365 0.00078159 0.00059695 0.00026152
1.4815 0.00036106 0.00031269 0.00018066
1.4905 0.00026952 0.0002255 0.00013486
1.5085 0.00058925 0.00058925 0.00029483
1.5265 0.00034585 0.00031572 6.4779e-06
1.5895 0.00034397 0.00034397 6.338e-06
1.6705 0.00014369 0.00013117 7.1894e-05
