Measurement E34M6

You are not logged in.

Experiment: E2A run CLAS data, 2010

Spokespersons: M. Osipenko

Publication:

Quantity measured: F2, dimensionless
Proton structure function.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none

Q2 : 0.425 GeV2
W : 0.7793462 — 1.29552 GeV
xb : 0.3475 — 2.7955

Observable quantity measured (Y axis): F2, dimensionless

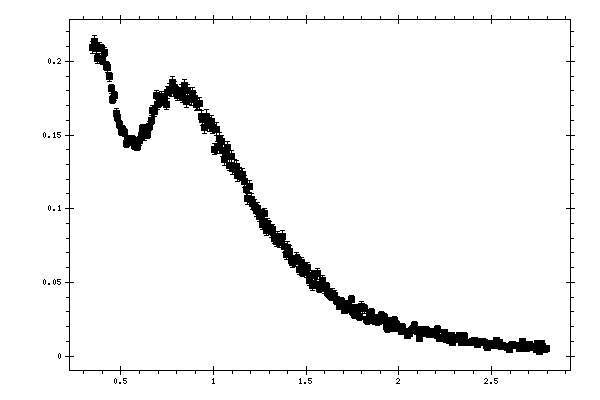

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x,
dimensionless 		F2,
dimensionless 		Data errors,
dimensionless 		Systematic errors,
dimensionless
0.3475 0.2095 0.0040925 0.010001
0.3565 0.21355 0.0037821 0.010003
0.3655 0.20868 0.0034649 0.018749
0.3745 0.20175 0.0032022 0.017956
0.3835 0.20971 0.0031104 0.020511
0.3925 0.20866 0.003056 0.017935
0.4015 0.20061 0.0030135 0.018065
0.4105 0.20625 0.003109 0.018095
0.4195 0.19665 0.0030408 0.016446
0.4285 0.19587 0.0030792 0.01582
0.4375 0.18963 0.0030006 0.015626
0.4465 0.18132 0.0029389 0.014151
0.4555 0.1741 0.0028989 0.012574
0.4645 0.17669 0.0029684 0.012528
0.4735 0.16497 0.0028814 0.011675
0.4825 0.16181 0.0028714 0.010522
0.4915 0.15722 0.0028209 0.0095905
0.5005 0.15261 0.0027703 0.0091422
0.5095 0.15347 0.0028446 0.010071
0.5185 0.15171 0.0028205 0.0087752
0.5275 0.14428 0.0027854 0.0072341
0.5365 0.14665 0.0027867 0.0069349
0.5455 0.14579 0.0028553 0.0067777
0.5545 0.14603 0.0028455 0.0066159
0.5635 0.1467 0.0028729 0.0061428
0.5725 0.14322 0.0028288 0.0062116
0.5815 0.14222 0.0028639 0.0055557
0.5905 0.14249 0.0028808 0.0053664
0.5995 0.14604 0.0029651 0.0064764
0.6085 0.14994 0.0030282 0.0057923
0.6175 0.15428 0.0030984 0.0060878
0.6265 0.1494 0.0030664 0.0065031
0.6355 0.15427 0.003098 0.0069385
0.6445 0.15048 0.0031431 0.0065182
0.6535 0.15611 0.0032536 0.0067883
0.6625 0.16014 0.0032652 0.0080991
0.6715 0.1667 0.0034111 0.0066219
0.6805 0.16612 0.003372 0.0082792
0.6895 0.1766 0.0035794 0.0085917
0.6985 0.17057 0.0035114 0.006734
0.7075 0.17294 0.0036019 0.0089252
0.7165 0.17617 0.0036455 0.006889
0.7255 0.17376 0.0036025 0.0068918
0.7345 0.17479 0.0037503 0.0085841
0.7435 0.17088 0.0036657 0.0062108
0.7525 0.1789 0.0037929 0.0063039
0.7615 0.18095 0.0038372 0.0064553
0.7705 0.18027 0.0039272 0.0089283
0.7795 0.18553 0.0039275 0.0082094
0.7885 0.18235 0.0039311 0.0076134
0.7975 0.17879 0.0038711 0.0090012
0.8065 0.17709 0.0039241 0.0084562
0.8155 0.17743 0.0039471 0.0063059
0.8245 0.18005 0.0039945 0.0071439
0.8335 0.17603 0.0039872 0.0068862
0.8425 0.18357 0.0041721 0.007932
0.8515 0.17283 0.004 0.0067657
0.8605 0.18001 0.0041907 0.0098009
0.8695 0.17508 0.0041976 0.0086172
0.8785 0.17395 0.0041445 0.0068382
0.8875 0.17831 0.0042565 0.0076786
0.8965 0.17458 0.0041871 0.0092775
0.9055 0.17081 0.004154 0.0093501
0.9145 0.17152 0.0042354 0.0060011
0.9235 0.17151 0.0042432 0.0075894
0.9325 0.16237 0.0041268 0.0073569
0.9415 0.16062 0.0041281 0.0062898
0.9505 0.15511 0.0040558 0.0065891
0.9595 0.16291 0.0042689 0.0078007
0.9685 0.15972 0.0043058 0.0066688
0.9775 0.15679 0.0042537 0.0062876
0.9865 0.1593 0.0043008 0.007031
0.9955 0.15491 0.00418 0.0075149
1.0045 0.14053 0.0040165 0.0050571
1.0135 0.1541 0.0043091 0.0091162
1.0225 0.14148 0.0040924 0.0050962
1.0315 0.14752 0.0041264 0.0059189
1.0405 0.14532 0.004221 0.005329
1.0495 0.13946 0.0041309 0.0061073
1.0585 0.13355 0.0041347 0.0050991
1.0675 0.13819 0.0042035 0.005066
1.0765 0.1414 0.0042279 0.006569
1.0855 0.12968 0.0040551 0.0046224
1.0945 0.13534 0.0041961 0.0060137
1.1035 0.12761 0.0040647 0.0072194
1.1125 0.1289 0.0042305 0.0058099
1.1215 0.12888 0.0041677 0.0060949
1.1305 0.1227 0.0040438 0.0077589
1.1395 0.12409 0.0041703 0.0079721
1.1485 0.12314 0.0041038 0.0048314
1.1575 0.12342 0.00411 0.0059827
1.1665 0.11836 0.0041066 0.0056987
1.1755 0.11313 0.0039199 0.0040512
1.1845 0.10668 0.003778 0.0042603
1.1935 0.11525 0.0040399 0.0054052
1.2025 0.10656 0.0038403 0.0055589
1.2115 0.10342 0.0038626 0.0041286
1.2205 0.10247 0.0039052 0.0036113
1.2295 0.098739 0.0038208 0.0085422
1.2385 0.1003 0.0039414 0.0035959
1.2475 0.094757 0.0037133 0.0044452
1.2565 0.095543 0.0037541 0.0056699
1.2655 0.089366 0.0036634 0.0040225
1.2745 0.096517 0.0038112 0.0034327
1.2835 0.085284 0.0035642 0.0057498
1.2925 0.08991 0.0036317 0.0040921
1.3015 0.08733 0.0038139 0.0036089
1.3105 0.084547 0.0037452 0.003992
1.3195 0.085735 0.0036903 0.0038054
1.3285 0.079826 0.003555 0.0046637
1.3375 0.077613 0.0035379 0.0034863
1.3465 0.080979 0.003644 0.0029145
1.3555 0.077276 0.0035634 0.0030902
1.3645 0.07768 0.0037746 0.0032145
1.3735 0.081454 0.0039062 0.0038356
1.3825 0.074065 0.0035422 0.0039841
1.3915 0.068722 0.0033235 0.00332
1.4005 0.073923 0.0036615 0.0065978
1.4095 0.071039 0.0036886 0.0033651
1.4185 0.065163 0.0033573 0.0030123
1.4275 0.063203 0.0032617 0.0035255
1.4365 0.064315 0.0033444 0.0023181
1.4455 0.066509 0.0034796 0.0027032
1.4545 0.065622 0.0034917 0.0031712
1.4635 0.058702 0.0032019 0.0050726
1.4725 0.063244 0.0036249 0.0067569
1.4815 0.056959 0.0031535 0.003973
1.4905 0.059828 0.0033172 0.0036476
1.4995 0.056457 0.0032306 0.0025821
1.5085 0.059807 0.0035176 0.0077052
1.5175 0.051173 0.0030856 0.003076
1.5265 0.054871 0.0033604 0.0025336
1.5355 0.047675 0.0030682 0.0035868
1.5445 0.054412 0.0033075 0.0035826
1.5535 0.048721 0.0029718 0.0041725
1.5625 0.055742 0.0034678 0.0059046
1.5715 0.045816 0.0029896 0.0039146
1.5805 0.048485 0.0030813 0.0022472
1.5895 0.051095 0.003373 0.0028761
1.5985 0.04552 0.0031103 0.0021148
1.6075 0.046914 0.0032446 0.0029707
1.6165 0.043073 0.0029513 0.002668
1.6255 0.041859 0.0030185 0.0035082
1.6345 0.040651 0.0027969 0.0019447
1.6435 0.042621 0.0029051 0.0018385
1.6525 0.041356 0.0029396 0.0027051
1.6615 0.03794 0.002764 0.0040712
1.6705 0.037575 0.0027532 0.0031261
1.6795 0.033968 0.0025492 0.001645
1.6885 0.036872 0.0027257 0.0020103
1.6975 0.0355 0.0027211 0.0014458
1.7065 0.030987 0.0024146 0.0017216
1.7155 0.034674 0.0026973 0.0036974
1.7245 0.034903 0.0026793 0.0020531
1.7335 0.032228 0.0026683 0.001772
1.7425 0.038179 0.0030112 0.0021179
1.7515 0.030066 0.0024308 0.002768
1.7605 0.027873 0.0023674 0.0010897
1.7695 0.032387 0.0026997 0.0017985
1.7785 0.031728 0.0026793 0.0021375
1.7875 0.026758 0.0023139 0.0027092
1.7965 0.033806 0.0029671 0.0021575
1.8055 0.032034 0.0028249 0.0029386
1.8145 0.032114 0.0029602 0.0020794
1.8235 0.024751 0.0024166 0.0014035
1.8325 0.023984 0.0022702 0.0020539
1.8415 0.028127 0.002609 0.0023024
1.8505 0.029814 0.0027418 0.0039344
1.8595 0.025634 0.0025442 0.0019621
1.8685 0.023982 0.0023523 0.0025163
1.8775 0.025842 0.0025972 0.003862
1.8865 0.023254 0.0022786 0.0023967
1.8955 0.024145 0.0024862 0.0025013
1.9045 0.027361 0.0027289 0.0010879
1.9135 0.025229 0.0024369 0.0055272
1.9225 0.026048 0.0025837 0.0039992
1.9315 0.02024 0.0022685 0.0026809
1.9405 0.01841 0.0021838 0.0017577
1.9495 0.023367 0.0026243 0.0020981
1.9585 0.018903 0.0020991 0.0024436
1.9675 0.021063 0.002354 0.0014103
1.9765 0.024263 0.0026414 0.0031193
1.9855 0.021483 0.0023365 0.00092473
1.9945 0.018924 0.0021189 0.00301
2.0035 0.018785 0.0021896 0.0022134
2.0125 0.016414 0.0020352 0.0017222
2.0215 0.019572 0.0024943 0.0032735
2.0305 0.016728 0.002005 0.00068372
2.0395 0.016424 0.0020728 0.0043043
2.0485 0.014057 0.0017939 0.00060902
2.0575 0.015308 0.0018099 0.0030419
2.0665 0.017468 0.0022041 0.0010923
2.0755 0.018292 0.0022756 0.0023065
2.0845 0.021032 0.00241 0.0033806
2.0935 0.017709 0.0024413 0.0038323
2.1025 0.016742 0.0022524 0.00065134
2.1115 0.012254 0.0016521 0.00047988
2.1205 0.01653 0.0022948 0.0010346
2.1295 0.017966 0.0023542 0.0045767
2.1385 0.015098 0.0018952 0.0021068
2.1475 0.017455 0.0023014 0.00085279
2.1565 0.015909 0.0021772 0.0022459
2.1655 0.014877 0.0021345 0.002249
2.1745 0.015795 0.0019907 0.0011622
2.1835 0.016703 0.0022815 0.002288
2.1925 0.015338 0.0021647 0.00085352
2.2015 0.0143 0.0021398 0.0016336
2.2105 0.018233 0.0025346 0.0026932
2.2195 0.011832 0.001765 0.00070632
2.2285 0.012006 0.0019053 0.0012874
2.2375 0.012876 0.0018788 0.0025175
2.2465 0.015879 0.002323 0.0032662
2.2555 0.011012 0.0017082 0.0020317
2.2645 0.012702 0.0021655 0.00067629
2.2735 0.010856 0.0017057 0.00083999
2.2825 0.013763 0.0021266 0.0031869
2.2915 0.0095255 0.0016193 0.0034036
2.3005 0.011974 0.0017558 0.0015721
2.3095 0.011418 0.0018501 0.0018824
2.3185 0.012507 0.0019443 0.0011128
2.3275 0.013701 0.0020368 0.0018441
2.3365 0.0093482 0.0015656 0.0012988
2.3455 0.014014 0.0021099 0.001097
2.3545 0.013531 0.0022989 0.0011941
2.3635 0.009531 0.001811 0.0015571
2.3725 0.0092738 0.0017567 0.00086768
2.3815 0.0089043 0.0016671 0.002524
2.3905 0.0091067 0.0015698 0.0032939
2.3995 0.0095942 0.001742 0.001389
2.4085 0.01071 0.0017467 0.00057977
2.4175 0.010174 0.0017941 0.00055746
2.4265 0.0075929 0.0014082 0.00072459
2.4355 0.0096881 0.0017363 0.0011959
2.4445 0.0097218 0.001749 0.0051705
2.4535 0.0097072 0.0018546 0.0011766
2.4625 0.00931 0.001751 0.0022523
2.4715 0.0069261 0.0014321 0.00095668
2.4805 0.0060144 0.0011706 0.0019486
2.4895 0.0083689 0.0015068 0.00036454
2.4985 0.0088416 0.001695 0.0012101
2.5075 0.0074727 0.0014821 0.00030198
2.5165 0.0084717 0.0015398 0.0015447
2.5255 0.010415 0.0021588 0.00072809
2.5345 0.0070252 0.0014431 0.00045072
2.5435 0.0092505 0.0018766 0.0017567
2.5525 0.006781 0.0016938 0.00030408
2.5615 0.0069662 0.0013382 0.00030979
2.5705 0.0064287 0.001449 0.00027805
2.5795 0.0062159 0.0013149 0.00035677
2.5885 0.0061172 0.0013316 0.00027628
2.5975 0.0047834 0.0010833 0.00030877
2.6065 0.0072698 0.0016954 0.00033525
2.6155 0.0076312 0.0017471 0.00033014
2.6245 0.0071951 0.0015824 0.00035603
2.6335 0.0069406 0.001501 0.00033208
2.6425 0.007195 0.0015306 0.00035102
2.6515 0.0051975 0.0013373 0.00030668
2.6605 0.0052756 0.0012507 0.00032815
2.6695 0.0095471 0.0018382 0.00042382
2.6785 0.0069518 0.0018346 0.00031835
2.6875 0.0048151 0.0012847 0.00022915
2.6965 0.0060373 0.0014548 0.00026776
2.7055 0.0079618 0.0020833 0.00049079
2.7145 0.0055531 0.0015491 0.00023173
2.7235 0.0063847 0.0014304 0.00028335
2.7325 0.0062827 0.0017317 0.00026156
2.7415 0.0044756 0.0012923 0.00025107
2.7505 0.0084213 0.0022637 0.00035833
2.7595 0.0029918 0.0010098 0.00018625
2.7685 0.0087646 0.0020741 0.0004354
2.7775 0.0062567 0.00161 0.00026905
2.7865 0.0042318 0.0010953 0.0002372
2.7955 0.0052917 0.0012753 0.00023608
