Measurement E39M132

You are not logged in.

Experiment: E1-5st-Sigma0 (E93-030/E00-112), 1999

Spokespersons: Mestayer, Hicks, Carman, Raue

Experiment comment: 5 structure function group analysis results for the K+Σ0 channel.

Publication:

Quantity measured: σTL,
Interference term.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: none

Q2 : 0.65 GeV2
W : 2.05 GeV

Observable quantity measured (Y axis): σTL,

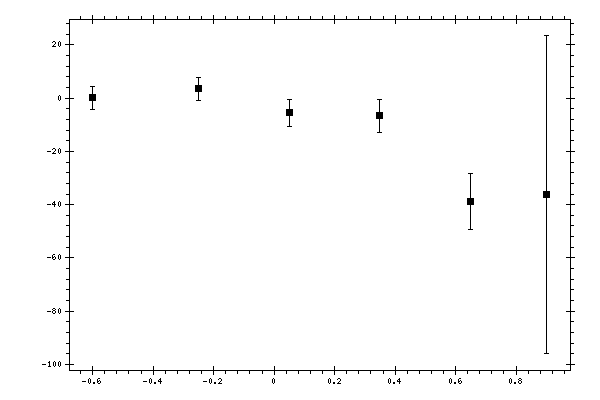

Plot measurement data

Parameter (X axis): cos(θ),

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ) σTL Data errors
-0.6 0.099 4.356
-0.25 3.451 4.441
0.05 -5.558 4.95
0.35 -6.689 6.081
0.65 -38.82 10.366
0.9 -36.176 59.553
