Parameter (X axis): cos(θ),
You are not logged in.
Experiment: E1-5st-Sigma0 (E93-030/E00-112), 1999
Spokespersons: Mestayer, Hicks, Carman, Raue
Experiment comment: 5 structure function group analysis results for the K+Σ0 channel.
Publication:
Quantity measured: σTT, nb/sr
Interference term.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: K+ Σ0, polarization: none
| Q2 : | 1 GeV2 |
|---|---|
| W : | 1.85 GeV |
|

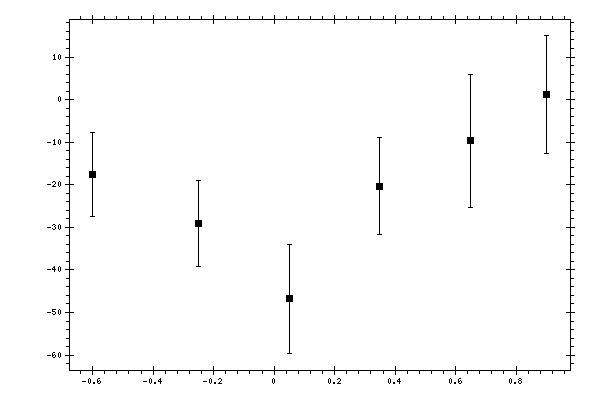

Observable quantity measured (Y axis): σTT, nb/sr
Parameter (X axis): cos(θ), |
Click here to get data in text file, delimited with tabs.
Measured data:
| cos(θ) |
σTT,
nb/sr |
Data errors,
nb/sr |
|---|---|---|
| -0.6 | -17.63 | 9.86 |
| -0.25 | -29.02 | 10.12 |
| 0.05 | -46.76 | 12.78 |
| 0.35 | -20.37 | 11.4 |
| 0.65 | -9.72 | 15.59 |
| 0.9 | 1.2 | 13.77 |
