Measurement E46M106

You are not logged in.

Experiment: N/A, 0

Spokespersons:

Publication:

S.A.Morrow, M.Guidal, M.Garcon, J.M.Laget, E.S.Smith, and CLAS Collaboration Exclusive ρ⁰ electroproduction on the proton at CLAS // Eur.Phys.J.A39,5-31(2009)

Quantity measured: r₀₀⁰⁴, dimensionless
Spin matrix element.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ⁰ p, polarization: none

Q² :	2.05 — 3.295 GeV²
x_b :	0.34 — 0.4
E_beam :	5.754 GeV

Observable quantity measured (Y axis): r₀₀⁰⁴, dimensionless

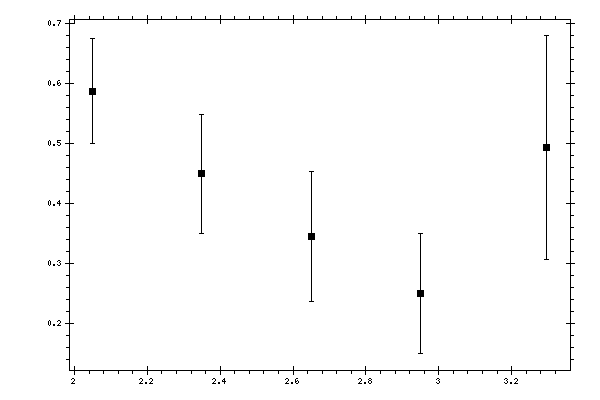

Plot measurement data

Parameter (X axis): Q², GeV²

Click here to get data in text file, delimited with tabs.

Measured data:

Q², GeV²	r₀₀⁰⁴, dimensionless	Stat. error, dimensionless
2.05	0.587106	0.087739
2.35	0.449364	0.098938
2.65	0.345119	0.108142
2.95	0.250204	0.099528
3.295	0.492943	0.186016
