Quantity measured: dσT/dt, mcb/GeV2
Transverse differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ0 p, polarization: none
Q2 : | 1.725 GeV2 | |
---|---|---|
xb : | 0.203 | |
Ebeam : | 5.754 GeV |

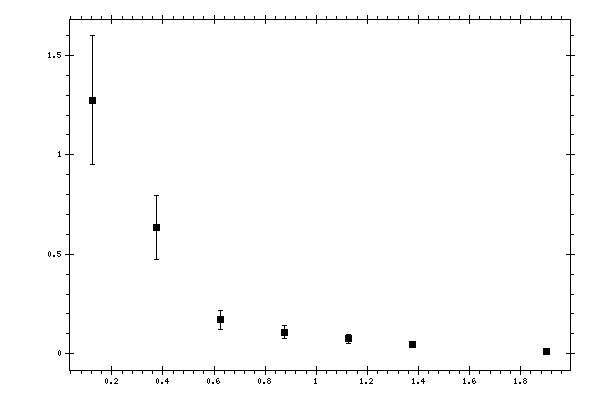

Observable quantity measured (Y axis): dσT/dt, mcb/GeV2
Parameter (X axis): -t, GeV2 |
Click here to get data in text file, delimited with tabs.
Measured data:
-t,
GeV2 |
dσT/dt,
mcb/GeV2 |
Data errors,
mcb/GeV2 |
---|---|---|
0.125 | 1.274321 | 0.323405 |
0.375 | 0.633831 | 0.161075 |
0.625 | 0.170615 | 0.048332 |
0.875 | 0.109354 | 0.03277 |
1.125 | 0.075114 | 0.023802 |
1.375 | 0.04532 | 0.015585 |
1.9 | 0.009805 | 0.006595 |
