Measurement E46M235

You are not logged in.

Experiment: N/A, 0

Spokespersons:

Publication:

S.A.Morrow, M.Guidal, M.Garcon, J.M.Laget, E.S.Smith, and CLAS Collaboration Exclusive ρ⁰ electroproduction on the proton at CLAS // Eur.Phys.J.A39,5-31(2009)

Quantity measured: dσ_T/dt, mcb/GeV²
Transverse differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ⁰ p, polarization: none

Q² :	2.639 GeV²
x_b :	0.313
E_beam :	5.754 GeV

Observable quantity measured (Y axis): dσ_T/dt, mcb/GeV²

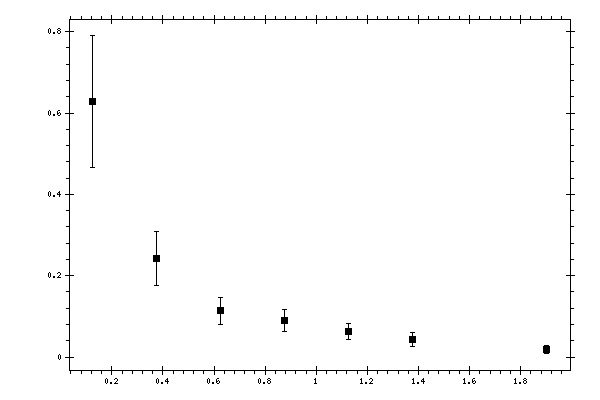

Plot measurement data

Parameter (X axis): -t, GeV²

Click here to get data in text file, delimited with tabs.

Measured data:

-t, GeV²	dσ_T/dt, mcb/GeV²	Stat. error, mcb/GeV²
0.125	0.627831	0.161958
0.375	0.24335	0.066305
0.625	0.113965	0.033434
0.875	0.08959	0.02764
1.125	0.062259	0.019972
1.375	0.042948	0.017377
1.9	0.01867	0.009069
