Measurement E46M28

You are not logged in.

Experiment: N/A, 0

Spokespersons:

Publication:

S.A.Morrow, M.Guidal, M.Garcon, J.M.Laget, E.S.Smith, and CLAS Collaboration Exclusive ρ⁰ electroproduction on the proton at CLAS // Eur.Phys.J.A39,5-31(2009)

Quantity measured: dσ/dt, mcb/GeV²
Differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ⁰ p, polarization: none

Q² :	2.95 GeV²
x_b :	0.37
E_beam :	5.754 GeV

Observable quantity measured (Y axis): dσ/dt, mcb/GeV²

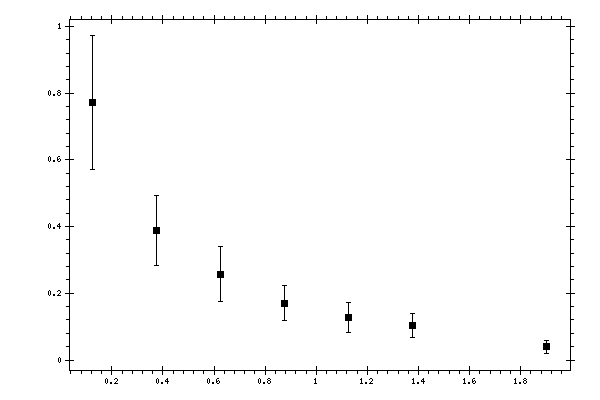

Plot measurement data

Parameter (X axis): -t, GeV²

Click here to get data in text file, delimited with tabs.

Measured data:

-t, GeV²	dσ/dt, mcb/GeV²	Stat. error, mcb/GeV²
0.125	0.77114	0.200315
0.375	0.388594	0.104246
0.625	0.257343	0.082416
0.875	0.170232	0.052336
1.125	0.128025	0.044864
1.375	0.103419	0.036653
1.9	0.039943	0.019259
