Measurement E46M31

You are not logged in.

Experiment: N/A, 0

Spokespersons:

Publication:

S.A.Morrow, M.Guidal, M.Garcon, J.M.Laget, E.S.Smith, and CLAS Collaboration Exclusive ρ⁰ electroproduction on the proton at CLAS // Eur.Phys.J.A39,5-31(2009)

Quantity measured: dσ/dt, mcb/GeV²
Differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ⁰ p, polarization: none

Q² :	2.65 GeV²
x_b :	0.43
E_beam :	5.754 GeV

Observable quantity measured (Y axis): dσ/dt, mcb/GeV²

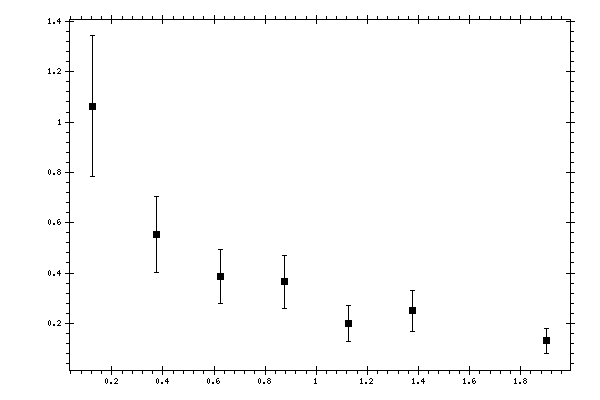

Plot measurement data

Parameter (X axis): -t, GeV²

Click here to get data in text file, delimited with tabs.

Measured data:

-t, GeV²	dσ/dt, mcb/GeV²	Stat. error, mcb/GeV²
0.125	1.063074	0.27957
0.375	0.552428	0.151956
0.625	0.387422	0.107907
0.875	0.365153	0.106147
1.125	0.19994	0.071705
1.375	0.249548	0.081427
1.9	0.130968	0.049465
