Measurement E46M37

You are not logged in.

Experiment: N/A, 0

Spokespersons:

Publication:

• S.A.Morrow, M.Guidal, M.Garcon, J.M.Laget, E.S.Smith, and CLAS Collaboration Exclusive ρ⁰ electroproduction on the proton at CLAS // Eur.Phys.J.A39,5-31(2009)

Quantity measured: dσ/dt, mcb/GeV2
Differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ⁰ p, polarization: none

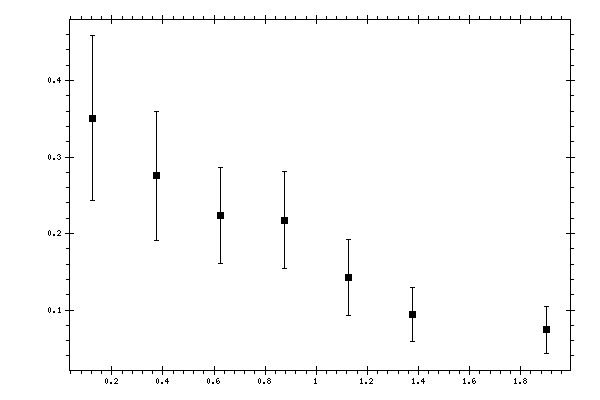

Observable quantity measured (Y axis): dσ/dt, mcb/GeV2 Parameter (X axis): -t, GeV2

Click here to get data in text file, delimited with tabs.

Measured data:
