Experiment: N/A, 0
Spokespersons:
Publication:
Quantity measured: dσ/dt, mcb/GeV2
Differential cross section over Mandelstam variable t.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ0 p, polarization: none
Q2 : | 4.352 GeV2 | |
---|---|---|
xb : | 0.61 | |
Ebeam : | 5.754 GeV |

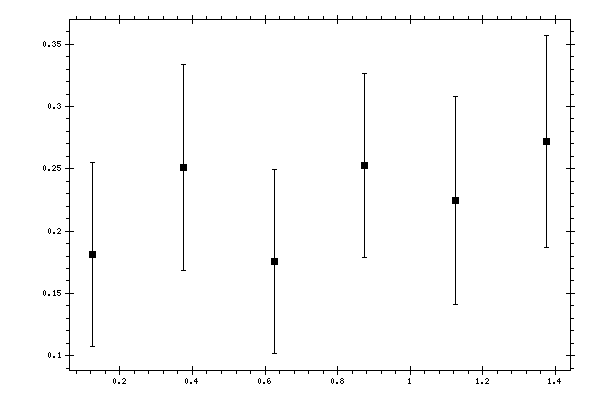

Observable quantity measured (Y axis): dσ/dt, mcb/GeV2
Parameter (X axis): -t, GeV2 |
Click here to get data in text file, delimited with tabs.
Measured data:
-t,
GeV2 |
dσ/dt,
mcb/GeV2 |
Data errors,
mcb/GeV2 |
---|---|---|
0.125 | 0.181008 | 0.073967 |
0.375 | 0.25106 | 0.082421 |
0.625 | 0.175644 | 0.073554 |
0.875 | 0.252893 | 0.073704 |
1.125 | 0.224317 | 0.083498 |
1.375 | 0.271869 | 0.084825 |
