Experiment: N/A, 0
Spokespersons:
Measurement comment: Fig.12 from reference.
Publication:
Quantity measured: σ, mcb
Cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ0 p, polarization: none
Q2 : | 2.8 — 3.1 GeV2 | |
---|---|---|
W : | 1.98752 — 2.42957 GeV | |
Ebeam : | 5.754 GeV |

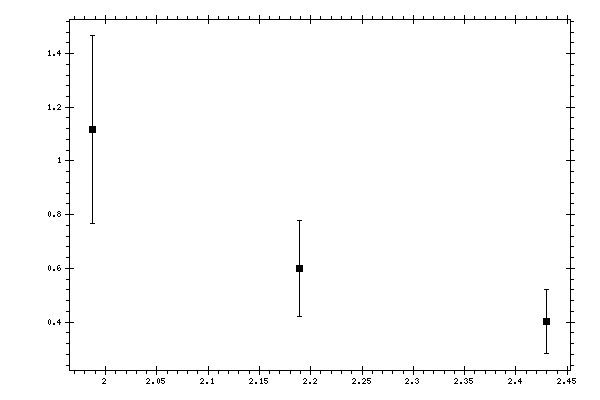

Observable quantity measured (Y axis): σ, mcb
Parameter (X axis): W, GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
W,
GeV |
σ,
mcb |
Data errors,
mcb |
---|---|---|
1.98752 | 1.1158 | 0.349881 |
2.18868 | 0.599674 | 0.17724 |
2.42957 | 0.402626 | 0.11775 |
