Experiment: N/A, 0
Spokespersons:
Publication:
Quantity measured: dσ/dφ, mcb/rad
Differential cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ0 p, polarization: none
Q2 : | 2.95 GeV2 | |
---|---|---|
xb : | 0.43 | |
Ebeam : | 5.754 GeV |

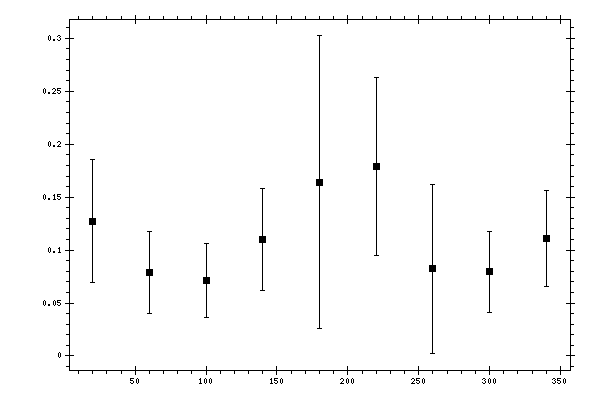

Observable quantity measured (Y axis): dσ/dφ, mcb/rad
Parameter (X axis): φ, degree |
Click here to get data in text file, delimited with tabs.
Measured data:
φ,
degree |
dσ/dφ,
mcb/rad |
Data errors,
mcb/rad |
---|---|---|
20 | 0.127333 | 0.057818 |
60 | 0.078534 | 0.038594 |
100 | 0.07163 | 0.034863 |
140 | 0.110292 | 0.048183 |
180 | 0.164056 | 0.138337 |
220 | 0.179198 | 0.084022 |
260 | 0.082299 | 0.079612 |
300 | 0.079354 | 0.038697 |
340 | 0.111242 | 0.045308 |
