Measurement E46M65

You are not logged in.

Experiment: N/A, 0

Spokespersons:

Publication:

S.A.Morrow, M.Guidal, M.Garcon, J.M.Laget, E.S.Smith, and CLAS Collaboration Exclusive ρ⁰ electroproduction on the proton at CLAS // Eur.Phys.J.A39,5-31(2009)

Quantity measured: dσ/dφ, mcb/rad
Differential cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ⁰ p, polarization: none

Q² :	3.85 GeV²
x_b :	0.49
E_beam :	5.754 GeV

Observable quantity measured (Y axis): dσ/dφ, mcb/rad

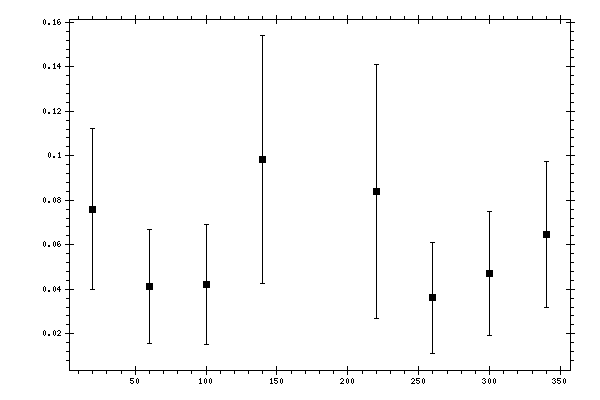

Plot measurement data

Parameter (X axis): φ, degree

Click here to get data in text file, delimited with tabs.

Measured data:

φ, degree	dσ/dφ, mcb/rad	Stat. error, mcb/rad
20	0.076063	0.036393
60	0.041085	0.02562
100	0.04197	0.026931
140	0.09821	0.055695
220	0.08382	0.057137
260	0.036201	0.024915
300	0.047201	0.027777
340	0.064492	0.032748
