Parameter (X axis): φ, degree
You are not logged in.
Experiment: N/A, 0
Spokespersons:
Publication:
Quantity measured: dσ/dφ, mcb/rad
Differential cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ0 p, polarization: none
| Q2 : | 4.307 GeV2 | |
|---|---|---|
| xb : | 0.494 | |
| Ebeam : | 5.754 GeV |
|
Observable quantity measured (Y axis): dσ/dφ, mcb/rad
Parameter (X axis): φ, degree |
Click here to get data in text file, delimited with tabs.

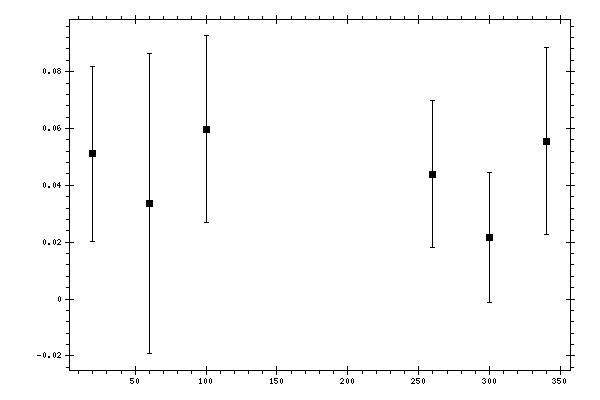

Measured data:
|
φ,
degree |
dσ/dφ,
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 20 | 0.051047 | 0.030649 |
| 60 | 0.033736 | 0.052771 |
| 100 | 0.059781 | 0.03282 |
| 260 | 0.043959 | 0.025997 |
| 300 | 0.021541 | 0.022853 |
| 340 | 0.055565 | 0.032941 |
