Measurement E46M71

You are not logged in.

Experiment: N/A, 0

Spokespersons:

Publication:

S.A.Morrow, M.Guidal, M.Garcon, J.M.Laget, E.S.Smith, and CLAS Collaboration Exclusive ρ⁰ electroproduction on the proton at CLAS // Eur.Phys.J.A39,5-31(2009)

Quantity measured: dσ/dφ, mcb/rad
Differential cross section.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: ρ⁰ p, polarization: none

Q² :	5.353 GeV²
x_b :	0.668
E_beam :	5.754 GeV

Observable quantity measured (Y axis): dσ/dφ, mcb/rad

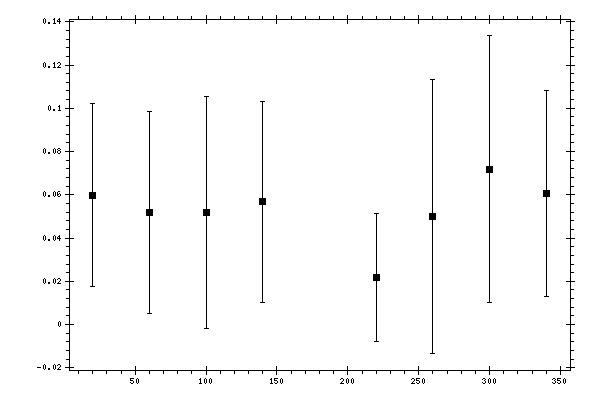

Plot measurement data

Parameter (X axis): φ, degree

Click here to get data in text file, delimited with tabs.

Measured data:

φ, degree	dσ/dφ, mcb/rad	Data errors, mcb/rad
20	0.05977	0.042228
60	0.051923	0.046776
100	0.051689	0.053586
140	0.056725	0.046637
220	0.021602	0.029547
260	0.050103	0.063313
300	0.071912	0.061571
340	0.060634	0.047685
