Measurement E49M1

You are not logged in.

Experiment: A comparison of forward and backward pp pair knockout in ³He(e, e'pp)n, 0

Spokespersons: H.Baghdasaryan, L.B.Weinstein, J.M.Laget

Publications:

H. Baghdasaryan, L. B. Weinstein, J. M. Laget, and CLAS Collaboration Comparison of forward and backward pp pair knockout in ³He(e,e`pp)n // PHYSICAL REVIEW C 85, 064318 (2012)
H. Baghdasaryan, L.B. Weinstein, J.M. Laget, and CLAS Collaboration Tensor Correlations Measured in ³He(e,e'pp)n // PRL 105, 222501 (2010)

Quantity measured: dσ/dP_rel,pn, fb/MeV
pn relative momentum distribution.
Beam: e, polarization: none
Target: He3 (Z=2, A=3), polarization: none
Final state: ppn, polarization: none

Q² :	0.8 — 4.9 GeV²
W :	0.3 — 3.9 GeV

Observable quantity measured (Y axis): dσ/dP_rel,pn, fb/MeV

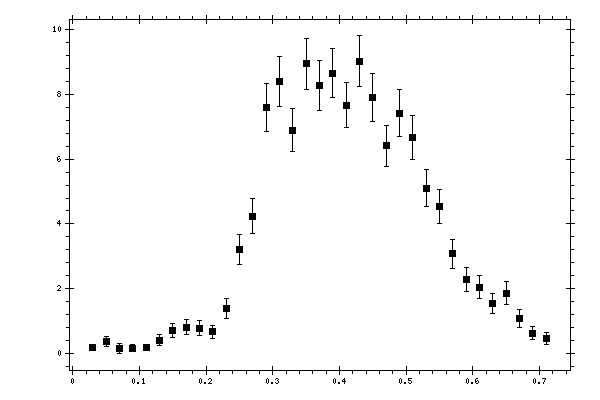

Plot measurement data

Parameter (X axis): P_rel,pn, GeV/c

Click here to get data in text file, delimited with tabs.

Measured data:

P_rel,pn, GeV/c	dσ/dP_rel,pn, fb/MeV	Data errors, fb/MeV
0.03	0.172	0.0994
0.05	0.356	0.159
0.07	0.145	0.145
0.09	0.155	0.11
0.11	0.167	0.0963
0.13	0.4	0.179
0.15	0.702	0.222
0.17	0.805	0.243
0.19	0.777	0.246
0.21	0.66	0.199
0.23	1.37	0.306
0.25	3.2	0.466
0.27	4.23	0.542
0.29	7.61	0.736
0.31	8.4	0.777
0.33	6.9	0.667
0.35	8.95	0.779
0.37	8.29	0.78
0.39	8.66	0.759
0.41	7.67	0.703
0.43	9.04	0.778
0.45	7.91	0.738
0.47	6.41	0.641
0.49	7.43	0.732
0.51	6.67	0.674
0.53	5.11	0.579
0.55	4.54	0.535
0.57	3.07	0.438
0.59	2.28	0.385
0.61	2.04	0.354
0.63	1.53	0.318
0.65	1.86	0.351
0.67	1.07	0.267
0.69	0.617	0.195
0.71	0.45	0.184
