Measurement E62M321

You are not logged in.

Experiment: E-94-005 CLAS experiment, 2006

Spokespersons: L. Elouadrhiri

Publication:

• G.V.Fedotov, V.I.Mokeev, V.D.Burkert, L.Elouadrhiri, E.N.Golovatch, B.S.Ishkhanov, E.L.Isupov, N.V.Shvedunov, and CLAS Collaboration Electroproduction of pπ⁺π⁻ off Protons at 0.2<Q²<0.6 GeV² and 1.3<W<1.57 GeV with CLAS // PRC 79, 015204 (2009)

Quantity measured: dσ/dψ(p), mcbn/rad
Differential cross section, where ψ(p) is out-of-plane angle of π⁺ and π⁻ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π⁺π⁻p, polarization: none

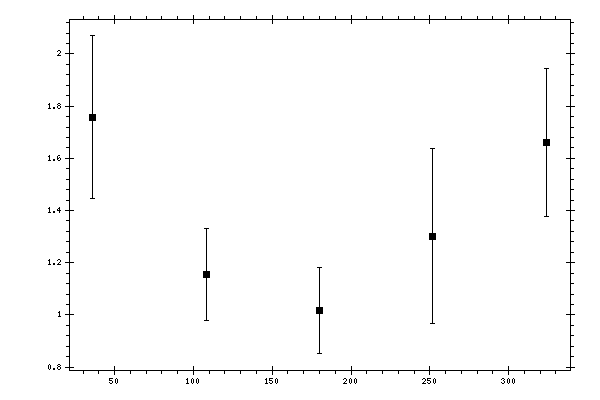

Observable quantity measured (Y axis): dσ/dψ(p), mcbn/rad Parameter (X axis): ψ(p), deg

Click here to get data in text file, delimited with tabs.

Measured data:
