Experiment: E-94-005 CLAS experiment, 2006
Spokespersons: L. Elouadrhiri
Publication:
Quantity measured: dσ/dM(π+,p), mcbn/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
Q2 : | 0.35 — 0.4 GeV2 |
---|---|
W : | 1.375 — 1.4 GeV |

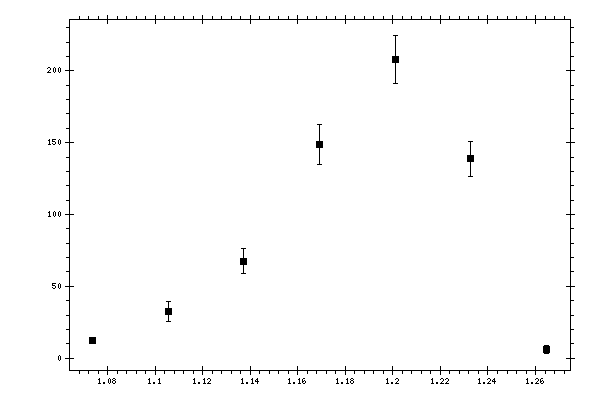

Observable quantity measured (Y axis): dσ/dM(π+,p), mcbn/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
M(π+,p),
GeV |
dσ/dM(π+,p),
mcbn/GeV |
Data errors,
mcbn/GeV |
---|---|---|
1.07374 | 12.082582 | 2.0913138 |
1.10554 | 32.361893 | 6.7784066 |
1.13734 | 67.584961 | 8.4306231 |
1.16913 | 148.83176 | 13.783533 |
1.20093 | 207.90839 | 16.430532 |
1.23273 | 138.87331 | 12.098895 |
1.26453 | 5.9738741 | 2.4952185 |
