Measurement E62M516

You are not logged in.

Experiment: E-94-005 CLAS experiment, 2006

Spokespersons: L. Elouadrhiri

Publication:

Quantity measured: dσ/d(−cos(θ(p))), mcbn/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+πp, polarization: none

Q2 : 0.4 — 0.45 GeV2
W : 1.475 — 1.5 GeV

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcbn/rad

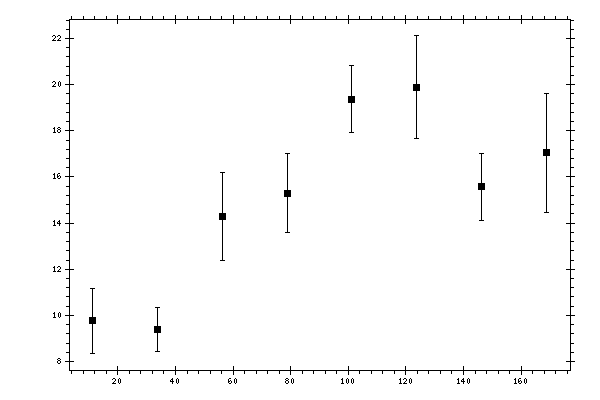

Plot measurement data

Parameter (X axis): θ(p), deg

Click here to get data in text file, delimited with tabs.

Measured data:

θ(p),
deg
dσ/d(−cos(θ(p))),
mcbn/rad
Data errors,
mcbn/rad
11.25 9.7709122 1.4070051
33.75 9.3960142 0.95993882
56.24999 14.283064 1.9116391
78.75 15.28791 1.7086372
101.24999 19.370356 1.4530659
123.74999 19.880795 2.2333848
146.25 15.576077 1.4588985
168.75 17.048473 2.58479
