Parameter (X axis): θ, deg
You are not logged in.
Experiment: E93-017, 1999
Spokespersons: P. Rossi, E. De Sanctis
Experiment comment: 2D data are presented in last measurement (N25) for this experiment.
Measurement comment: Eγ= 2.051 GeV
Publication:
Quantity measured: dσ/dΩ, mcbn/srad
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none
| W : | 3.35 GeV |
|---|---|
| xb : | 0 |
|

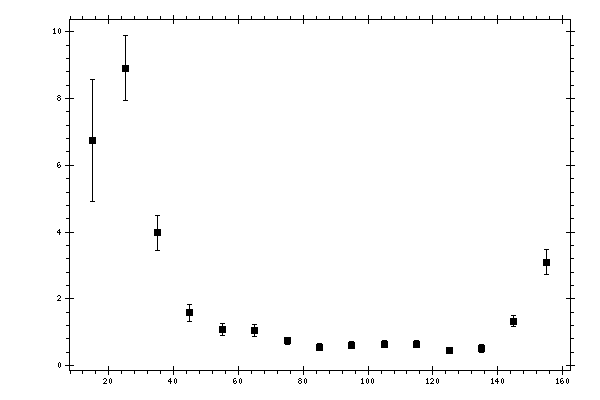

Observable quantity measured (Y axis): dσ/dΩ, mcbn/srad
Parameter (X axis): θ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ,
deg |
dσ/dΩ,
mcbn/srad |
Data errors,
mcbn/srad |
|---|---|---|
| 15 | 6.7405 | 1.8314 |
| 25 | 8.9166 | 0.9643 |
| 35 | 3.973 | 0.5182 |
| 45 | 1.5765 | 0.2518 |
| 55 | 1.0802 | 0.1828 |
| 65 | 1.051 | 0.1807 |
| 75 | 0.7355 | 0.117 |
| 85 | 0.5506 | 0.0992 |
| 95 | 0.5997 | 0.1055 |
| 105 | 0.6435 | 0.1003 |
| 115 | 0.6383 | 0.1107 |
| 125 | 0.4555 | 0.0857 |
| 135 | 0.5067 | 0.1097 |
| 145 | 1.3289 | 0.1703 |
| 155 | 3.0986 | 0.3845 |
