Parameter (X axis): θ, deg
You are not logged in.
Experiment: E93-017, 1999
Spokespersons: P. Rossi, E. De Sanctis
Experiment comment: 2D data are presented in last measurement (N25) for this experiment.
Measurement comment: Eγ= 2.147 GeV
Publication:
Quantity measured: dσ/dΩ, mcbn/srad
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none
| W : | 3.4 GeV |
|---|---|
| xb : | 0 |
|

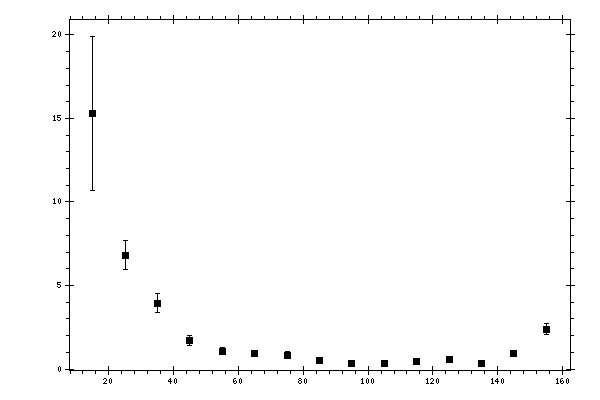

Observable quantity measured (Y axis): dσ/dΩ, mcbn/srad
Parameter (X axis): θ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ,
deg |
dσ/dΩ,
mcbn/srad |
Stat. error,
mcbn/srad |
|---|---|---|
| 15 | 15.2893 | 4.6166 |
| 25 | 6.8042 | 0.8702 |
| 35 | 3.9312 | 0.5589 |
| 45 | 1.7018 | 0.2748 |
| 55 | 1.0656 | 0.1943 |
| 65 | 0.9496 | 0.1682 |
| 75 | 0.8295 | 0.211 |
| 85 | 0.5328 | 0.0992 |
| 95 | 0.3103 | 0.1086 |
| 105 | 0.3103 | 0.0721 |
| 115 | 0.4785 | 0.1337 |
| 125 | 0.5621 | 0.1024 |
| 135 | 0.3197 | 0.0804 |
| 145 | 0.9423 | 0.1463 |
| 155 | 2.3809 | 0.3354 |
