Parameter (X axis): θ, deg
You are not logged in.
Experiment: E93-017, 1999
Spokespersons: P. Rossi, E. De Sanctis
Experiment comment: 2D data are presented in last measurement (N25) for this experiment.
Measurement comment: Eγ= 2.331 GeV
Publication:
Quantity measured: dσ/dΩ, mcbn/srad
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none
| W : | 3.5 GeV |
|---|---|
| xb : | 0 |
|

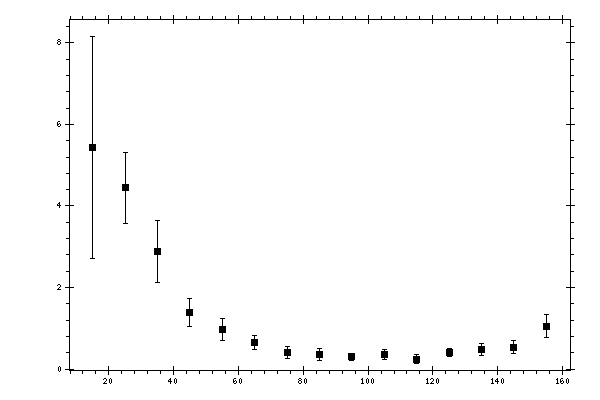

Observable quantity measured (Y axis): dσ/dΩ, mcbn/srad
Parameter (X axis): θ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ,
deg |
dσ/dΩ,
mcbn/srad |
Stat. error,
mcbn/srad |
|---|---|---|
| 15 | 5.4367 | 2.7225 |
| 25 | 4.4463 | 0.8723 |
| 35 | 2.8813 | 0.7616 |
| 45 | 1.3926 | 0.3427 |
| 55 | 0.9695 | 0.281 |
| 65 | 0.6467 | 0.1797 |
| 75 | 0.4085 | 0.1515 |
| 85 | 0.3604 | 0.1494 |
| 95 | 0.2967 | 0.094 |
| 105 | 0.3667 | 0.1233 |
| 115 | 0.2434 | 0.1149 |
| 125 | 0.4033 | 0.1066 |
| 135 | 0.4806 | 0.1389 |
| 145 | 0.5307 | 0.1609 |
| 155 | 1.0478 | 0.2863 |
