Parameter (X axis): θ, deg
You are not logged in.
Experiment: E93-017, 1999
Spokespersons: P. Rossi, E. De Sanctis
Experiment comment: 2D data are presented in last measurement (N25) for this experiment.
Measurement comment: Eγ= 2.458 GeV
Publication:
Quantity measured: dσ/dΩ, mcbn/srad
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none
| W : | 3.57 GeV |
|---|---|
| xb : | 0 |
|

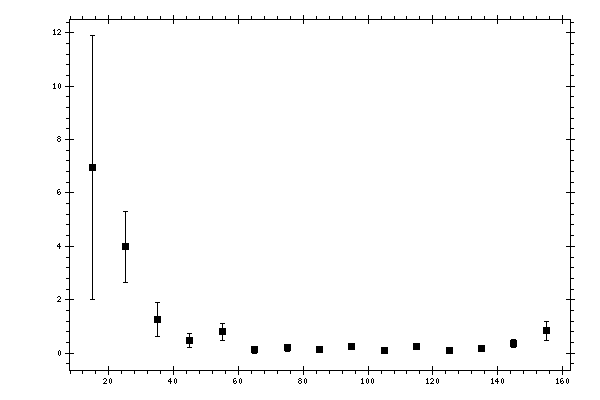

Observable quantity measured (Y axis): dσ/dΩ, mcbn/srad
Parameter (X axis): θ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ,
deg |
dσ/dΩ,
mcbn/srad |
Stat. error,
mcbn/srad |
|---|---|---|
| 15 | 6.939 | 4.9456 |
| 25 | 3.9803 | 1.3289 |
| 35 | 1.2651 | 0.6331 |
| 45 | 0.4597 | 0.2654 |
| 55 | 0.795 | 0.3259 |
| 65 | 0.1254 | 0.1254 |
| 75 | 0.1954 | 0.1379 |
| 85 | 0.1306 | 0.093 |
| 95 | 0.2497 | 0.1254 |
| 105 | 0.116 | 0.0825 |
| 115 | 0.2361 | 0.1181 |
| 125 | 0.117 | 0.0825 |
| 135 | 0.1661 | 0.0961 |
| 145 | 0.3636 | 0.164 |
| 155 | 0.8316 | 0.3427 |
