Parameter (X axis): θ, deg
You are not logged in.
Experiment: E93-017, 1999
Spokespersons: P. Rossi, E. De Sanctis
Experiment comment: 2D data are presented in last measurement (N25) for this experiment.
Measurement comment: Eγ= 2.548 GeV
Publication:
Quantity measured: dσ/dΩ, mcbn/srad
Differential cross section.
Beam: γ, polarization: circular
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none
| W : | 3.62 GeV |
|---|---|
| xb : | 0 |
|
Observable quantity measured (Y axis): dσ/dΩ, mcbn/srad
Parameter (X axis): θ, deg |
Click here to get data in text file, delimited with tabs.

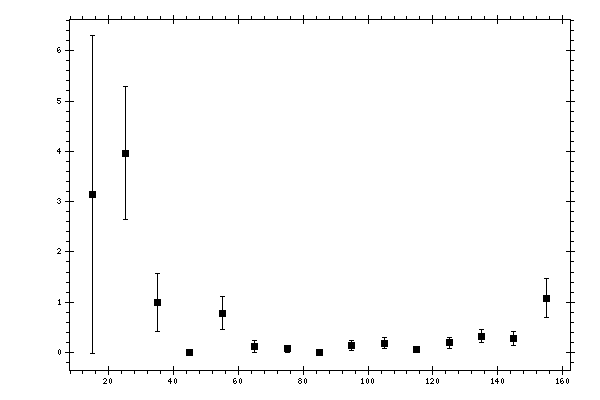

Measured data:
|
θ,
deg |
dσ/dΩ,
mcbn/srad |
Stat. error,
mcbn/srad |
|---|---|---|
| 15 | 3.1414 | 3.154 |
| 25 | 3.9574 | 1.3216 |
| 35 | 0.9893 | 0.5715 |
| 45 | 0 | 0 |
| 55 | 0.7846 | 0.3207 |
| 65 | 0.1212 | 0.1212 |
| 75 | 0.0721 | 0.0721 |
| 85 | 0 | 0 |
| 95 | 0.1337 | 0.0951 |
| 105 | 0.188 | 0.1097 |
| 115 | 0.0585 | 0.0585 |
| 125 | 0.1912 | 0.1118 |
| 135 | 0.327 | 0.1348 |
| 145 | 0.2779 | 0.14 |
| 155 | 1.0771 | 0.3886 |
