Parameter (X axis): θ, deg
You are not logged in.
Experiment: E93-031, 2002
Spokespersons: B. Ritchie
Publication:
Quantity measured: dσ/dΩ, mcbn/sterad
Differential cross section.
Beam: γ, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: η p, polarization: none
| W : | 1.075 GeV |
|---|---|
| xb : | 0 |
|

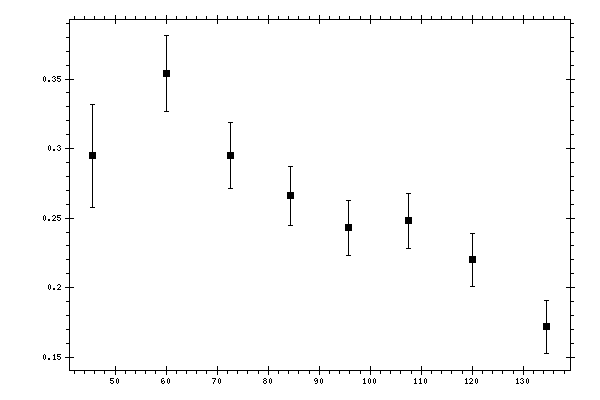

Observable quantity measured (Y axis): dσ/dΩ, mcbn/sterad
Parameter (X axis): θ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ,
deg |
dσ/dΩ,
mcbn/sterad |
Stat. error,
mcbn/sterad |
|---|---|---|
| 134.5 | 0.172 | 0.019 |
| 120.1 | 0.22 | 0.019 |
| 107.5 | 0.248 | 0.02 |
| 95.8 | 0.243 | 0.02 |
| 84.3 | 0.266 | 0.021 |
| 72.6 | 0.295 | 0.024 |
| 60 | 0.354 | 0.027 |
| 45.6 | 0.295 | 0.037 |
