Measurement E83M1

You are not logged in.

Experiment: E93-017 CLAS Experiment, 0

Spokespersons: M. Mirazita

Measurement comment: Angular distributions of the photodisintegration cross section for angle between 10 and 20 degrees in the CM.

Publication:

M. Mirazita, F. Ronchetti, P. Rossi, E. De Sanctis and CLAS Collaboration Complete Angular Distribution Measurements of Two-Body Deuteron Photodisintegration between 0.5 and 3 GeV // Phys. Rev. C 70 (2004) 014005

Quantity measured: dσ/dΩ, nb/sterad
Differential cross section.
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none

W :	0.56 — 2.886 GeV
x_b :	0

Observable quantity measured (Y axis): dσ/dΩ, nb/sterad

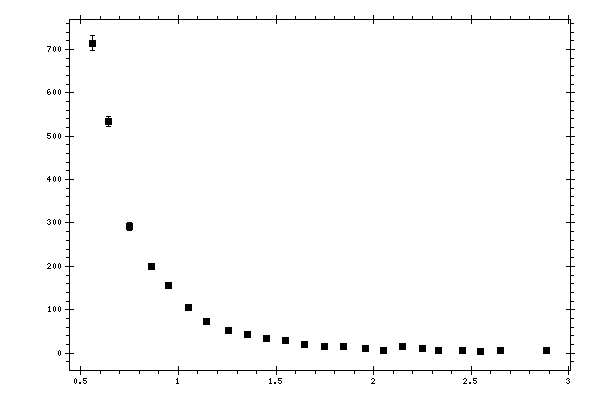

Plot measurement data

Parameter (X axis): E_γ, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

E_γ, GeV	dσ/dΩ, nb/sterad	Stat. error, nb/sterad
0.56	714.5	16.9
0.641	534.3	11.6
0.75	291.5	9.5
0.864	198.9	5.5
0.95	155.2	4.1
1.052	104.4	3.9
1.142	72.04	3.15
1.254	52.8	2.91
1.355	43.36	2.73
1.449	33.71	2.46
1.548	29.01	2.52
1.648	20.53	2.18
1.751	16.39	2.15
1.845	14.62	2.56
1.959	10.02	2.08
2.051	6.74	1.83
2.147	15.29	4.62
2.25	10.37	4.24
2.331	5.44	2.72
2.458	6.94	4.95
2.548	3.14	3.15
2.651	6.27	4.45
2.886	5.86	5.88
