Measurement E83M12

You are not logged in.

Experiment: E93-017 CLAS Experiment, 0

Spokespersons: M. Mirazita

Measurement comment: Angular distributions of the photodisintegration cross section for angle between 120 and 130 degrees in the CM.

Publication:

M. Mirazita, F. Ronchetti, P. Rossi, E. De Sanctis and CLAS Collaboration Complete Angular Distribution Measurements of Two-Body Deuteron Photodisintegration between 0.5 and 3 GeV // Phys. Rev. C 70 (2004) 014005

Quantity measured: dσ/dΩ, nb/sterad
Differential cross section.
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none

W :	0.56 — 2.886 GeV
x_b :	0

Observable quantity measured (Y axis): dσ/dΩ, nb/sterad

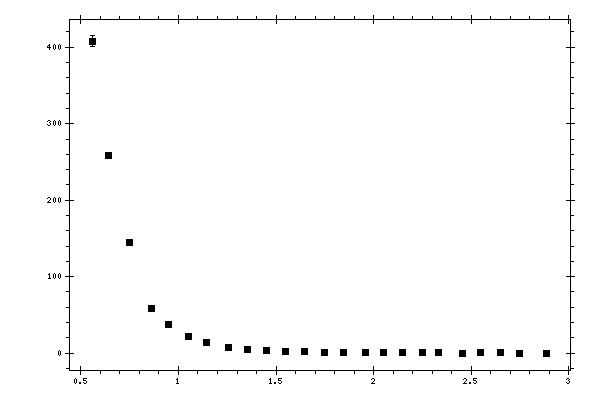

Plot measurement data

Parameter (X axis): E_γ, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

E_γ, GeV	dσ/dΩ, nb/sterad	Data errors, nb/sterad
0.56	407.8	7.1
0.641	258	3.5
0.75	145	2.8
0.864	57.99	1.18
0.95	37.02	0.68
1.052	21.77	0.58
1.142	13.27	0.43
1.254	7.49	0.33
1.355	5.21	0.27
1.449	3.17	0.21
1.548	2.53	0.2
1.648	1.97	0.17
1.751	1.18	0.13
1.845	1.11	0.14
1.959	0.719	0.111
2.051	0.456	0.086
2.147	0.562	0.102
2.25	0.284	0.072
2.331	0.403	0.107
2.458	0.117	0.083
2.548	0.191	0.112
2.651	0.214	0.108
2.749	0.123	0.087
2.886	0.063	0.063
