Measurement E83M4

You are not logged in.

Experiment: E93-017 CLAS Experiment, 0

Spokespersons: M. Mirazita

Measurement comment: Angular distributions of the photodisintegration cross section for angle between 40 and 50 degrees in the CM.

Publication:

M. Mirazita, F. Ronchetti, P. Rossi, E. De Sanctis and CLAS Collaboration Complete Angular Distribution Measurements of Two-Body Deuteron Photodisintegration between 0.5 and 3 GeV // Phys. Rev. C 70 (2004) 014005

Quantity measured: dσ/dΩ, nb/sterad
Differential cross section.
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none

W :	0.56 — 2.886 GeV
x_b :	0

Observable quantity measured (Y axis): dσ/dΩ, nb/sterad

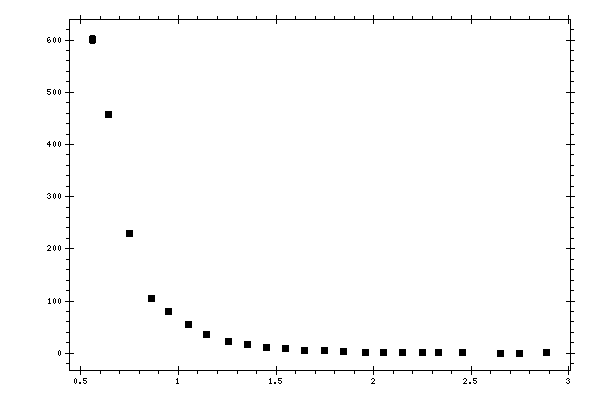

Plot measurement data

Parameter (X axis): E_γ, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

E_γ, GeV	dσ/dΩ, nb/sterad	Stat. error, nb/sterad
0.56	601.1	7
0.641	456.6	5.1
0.75	228.6	4
0.864	105.6	1.8
0.95	80.01	1.28
1.052	54.58	1.2
1.142	35.43	0.92
1.254	22.99	0.77
1.355	16.49	0.66
1.449	11.8	0.51
1.548	8.36	0.46
1.648	6.09	0.4
1.751	4.31	0.35
1.845	2.64	0.29
1.959	1.69	0.27
2.051	1.58	0.25
2.147	1.7	0.27
2.25	0.779	0.187
2.331	1.39	0.34
2.458	0.46	0.265
2.651	0.309	0.219
2.749	0.349	0.248
2.886	0.503	0.254
