Measurement E83M7

You are not logged in.

Experiment: E93-017 CLAS Experiment, 0

Spokespersons: M. Mirazita

Measurement comment: Angular distributions of the photodisintegration cross section for angle between 70 and 80 degrees in the CM.

Publication:

M. Mirazita, F. Ronchetti, P. Rossi, E. De Sanctis and CLAS Collaboration Complete Angular Distribution Measurements of Two-Body Deuteron Photodisintegration between 0.5 and 3 GeV // Phys. Rev. C 70 (2004) 014005

Quantity measured: dσ/dΩ, nb/sterad
Differential cross section.
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: p n, polarization: none

W :	0.56 — 2.886 GeV
x_b :	0

Observable quantity measured (Y axis): dσ/dΩ, nb/sterad

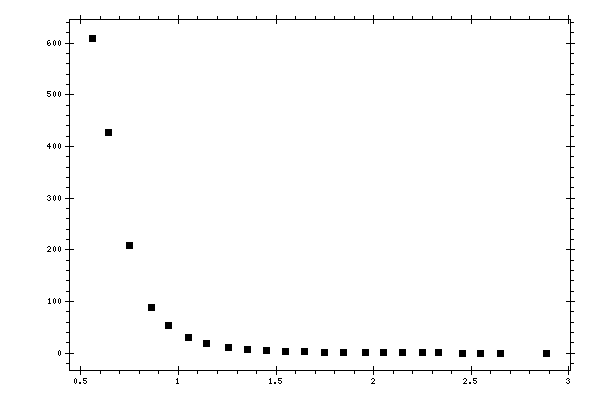

Plot measurement data

Parameter (X axis): E_γ, GeV

Click here to get data in text file, delimited with tabs.

Measured data:

E_γ, GeV	dσ/dΩ, nb/sterad	Data errors, nb/sterad
0.56	608.7	5.3
0.641	426.6	3.5
0.75	208.9	2.6
0.864	89.08	1.23
0.95	52.91	0.76
1.052	31.05	0.66
1.142	19.53	0.5
1.254	10.1	0.37
1.355	6.29	0.3
1.449	4.62	0.23
1.548	3.95	0.23
1.648	2.9	0.2
1.751	1.98	0.17
1.845	1.58	0.16
1.959	1.15	0.15
2.051	0.735	0.117
2.147	0.83	0.211
2.25	0.361	0.116
2.331	0.408	0.152
2.458	0.195	0.138
2.548	0.072	0.072
2.651	0.183	0.134
2.886	0.115	0.115
