Measurement E85M3

You are not logged in.

Experiment: E89-036 CLAS Experiment, 1999

Spokespersons: K. Sh. Egiyan

Experiment comment: In analysis the well known wave functions of deuterium and 3He have been used.

Publication:

K.Sh. Egiyan, N. Dashyan, M. Sargsian, S. Stepanyan, L.B. Weinstein and CLAS collaboration Observation of nuclear scaling in the A(e,e') reaction at x_B.1 // Phys. Rev. C 68, 014313 (2003)

Quantity measured: R(⁴He/³He), dimensionless
The ratio for measured 4-He cross-section over similar cross-section of 3-He.
Beam: e, polarization: none
Target: He3 (Z=2, A=3), polarization: none
Final state: inclusive, polarization: none

Q² :	1.4 — 2.6 GeV²
x_b :	0.95 — 2

Observable quantity measured (Y axis): R(⁴He/³He), dimensionless

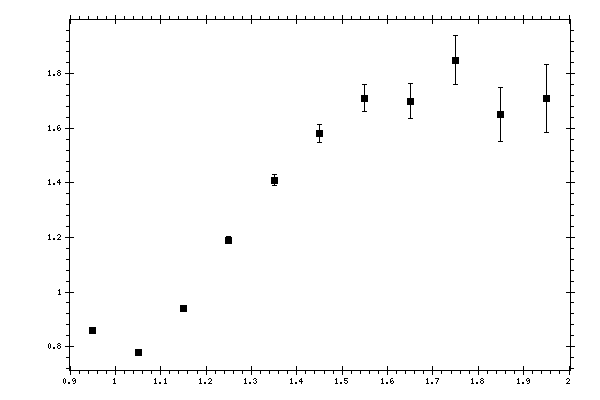

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x, dimensionless	R(⁴He/³He), dimensionless	Data error, dimensionless
0.95	0.86	0.004
1.05	0.78	0.004
1.15	0.94	0.006
1.25	1.19	0.012
1.35	1.41	0.021
1.45	1.58	0.033
1.55	1.71	0.049
1.65	1.7	0.063
1.75	1.85	0.089
1.85	1.65	0.1
1.95	1.71	0.124
