Measurement E85M5

You are not logged in.

Experiment: E89-036 CLAS Experiment, 1999

Spokespersons: K. Sh. Egiyan

Experiment comment: In analysis the well known wave functions of deuterium and 3He have been used.

Publication:

K.Sh. Egiyan, N. Dashyan, M. Sargsian, S. Stepanyan, L.B. Weinstein and CLAS collaboration Observation of nuclear scaling in the A(e,e') reaction at x_B.1 // Phys. Rev. C 68, 014313 (2003)

Quantity measured: R(⁵⁶Fe/³He), dimensionless
The ratio for measured 56-Fe cross-section over similar cross-section of 3-He.
Beam: e, polarization: none
Target: He3 (Z=2, A=3), polarization: none
Final state: inclusive, polarization: none

Q² :	1.4 — 2.6 GeV²
x_b :	0.95 — 2

Observable quantity measured (Y axis): R(⁵⁶Fe/³He), dimensionless

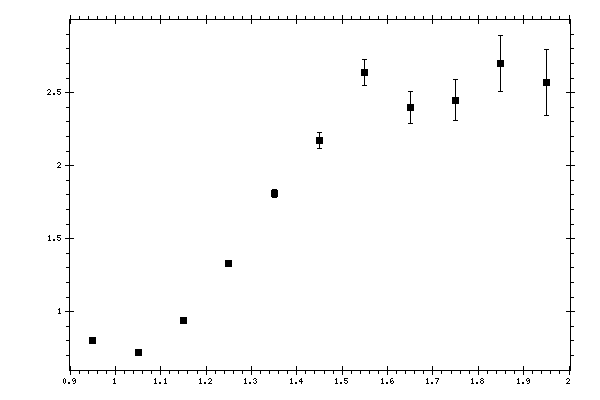

Plot measurement data

Parameter (X axis): x, dimensionless

Click here to get data in text file, delimited with tabs.

Measured data:

x, dimensionless	R(⁵⁶Fe/³He), dimensionless	Data error, dimensionless
0.95	0.8	0.004
1.05	0.72	0.004
1.15	0.94	0.007
1.25	1.33	0.015
1.35	1.81	0.03
1.45	2.17	0.055
1.55	2.64	0.087
1.65	2.4	0.109
1.75	2.45	0.139
1.85	2.7	0.19
1.95	2.57	0.227
