Parameter (X axis): x, dimensionless
You are not logged in.
Experiment: Measurement of 2- and 3- Nucleon Short Range Correlation Probabilities in Nuclei, 2002
Spokespersons: K. Sh.Egiyan
Experiment comment: Using the measured onsets of 2- and 3-nucleon SRC, combined with the well known wave functions of deuterium and 3He, the absolute probabilities of these correlations were extracted, too.
Publications:
Quantity measured: R(12C/3He), dimensionless
The ratio for measured 12-C cross-section over similar cross-section of 3-He.
Beam: e, polarization: none
Target: C12 (Z=6, A=12), polarization: none
Final state: inclusive, polarization: none
| Q2 : | 1.4 — 2.6 GeV2 |
|---|---|
| xb : | 0.85 — 3 |
|

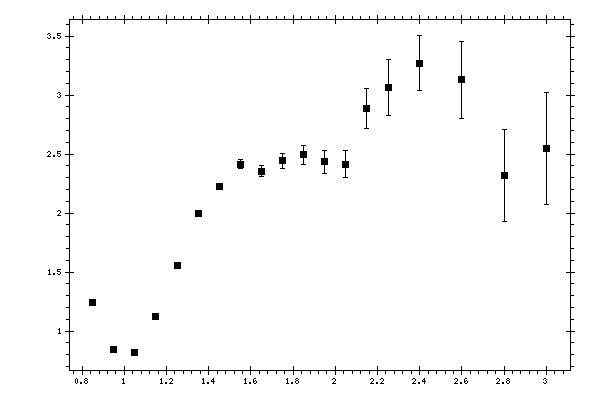

Observable quantity measured (Y axis): R(12C/3He), dimensionless
Parameter (X axis): x, dimensionless |
Click here to get data in text file, delimited with tabs.
Measured data:
|
x,
dimensionless |
R(12C/3He),
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 0.85 | 1.242626 | 0.002990076 |
| 0.95 | 0.8410753 | 0.002355927 |
| 1.05 | 0.8164999 | 0.002760586 |
| 1.15 | 1.121442 | 0.005052367 |
| 1.25 | 1.552014 | 0.009644381 |
| 1.35 | 1.995594 | 0.01724318 |
| 1.45 | 2.226112 | 0.02674082 |
| 1.55 | 2.414105 | 0.03860208 |
| 1.65 | 2.356703 | 0.04975215 |
| 1.75 | 2.443346 | 0.06461904 |
| 1.85 | 2.493967 | 0.08109814 |
| 1.95 | 2.435133 | 0.09873408 |
| 2.05 | 2.41567 | 0.1178641 |
| 2.15 | 2.882781 | 0.1700769 |
| 2.25 | 3.063421 | 0.238843 |
| 2.4 | 3.270747 | 0.2307836 |
| 2.6 | 3.128684 | 0.3285699 |
| 2.8 | 2.319692 | 0.3869983 |
| 3 | 2.549413 | 0.4728675 |
